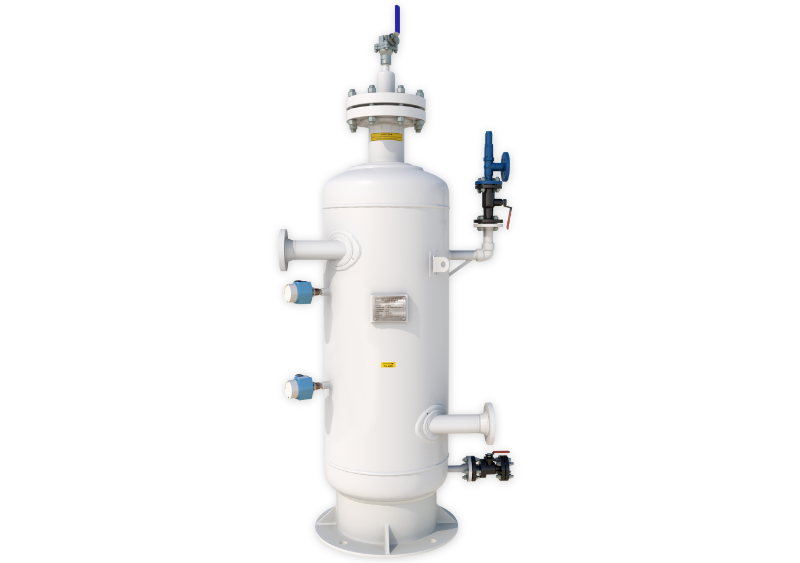

Introducing Cryogenic's Optical Air Eliminator, a cutting-edge solution tailored for loading and unloading applications where low flow or high air presence demands immediate flow control.
Operating on the principle of liquid level sensing, this innovative device is equipped with optical sensors strategically placed at different elevations to ensure precise liquid level detection.
1. Faster Response Time:
Experience unparalleled response times with our Optical Air Eliminator, ensuring swift and accurate control in loading and unloading applications.
2. Dual-Level Optical Sensors:
Benefit from an additional layer of assurance with two-level optical sensors, providing double security in liquid level detection.
3. Bidirectional Flow Capability:
Enjoy the flexibility of bidirectional flow installation, accommodating both left-to-right and right-to-left flow directions to suit diverse application needs.
4. Space-Efficient Vertical Design:
The vertical design optimizes installation space, making it an ideal solution for applications where space is a critical consideration.
5. High-Capacity Air Elimination:
Ensure the accuracy of metering devices and the safety of the entire system with the high-capacity air elimination capability of our Optical Air Eliminator.
6. Simple Interface with Various Meters:
Seamlessly integrate with Positive Displacement Meters and Mass Flow Meters, providing a simple interface that enhances the performance of these devices.
7. Comprehensive System Protection:
When used in conjunction with a Thermal Relief Valve, our Optical Air Eliminator provides comprehensive protection to all system components, safeguarding against potential issues.
8. Accurate Measurement:
Achieve precise liquid measurement with the Optical Air Eliminator, ensuring the elimination of air during critical loading and unloading processes.
9. Simplified Maintenance Design:
Experience ease of maintenance with a straightforward design, eliminating complications in routine upkeep.
10. Zero Drain Facility:
The zero drain facility enhances operational convenience, allowing for efficient system drainage without complications.
11. Stainless Steel Internals:
Trust in the durability and corrosion resistance of our Optical Air Eliminator, featuring stainless steel internals for longevity in challenging environments.
12. Customizable Retention Time:
Tailor the air eliminator retention time to specific requirements, offering higher customization options for optimal system performance.
Elevate your loading and unloading applications with Cryogenic's Optical Air Eliminator, where advanced technology meets reliability for unparalleled control and accuracy in critical processes
| S0 - Nominal Size mm | ||||
|---|---|---|---|---|
| S0- 1.5"( 40 mm) | S1 - 2" (50 mm) | S2 - 3" (80 mm) | S3 - 4" (100 mm) | S4 - 6" (150 mm) |
| S5 - 8" (200 mm) | S6 - 10" (250 mm) | S7 - 12" (300 mm) | S8 - 14" (350 mm) | S9 - 16" (400 mm) |
| S10 - 18" (450 mm) | S11 - 20" (500 mm) | S12 - 24" (600 mm) | S13- AS PER CUSTOMER'S REQUIRMENT | |
| R - Rating (Standard flange are slip on race face type if Weld Neck type is required pls specify) |
|---|
| R1 - ANSI B 16.5 150# |
| R2 - ANSI B 16.5 300# |
| R3 - ANSI B 16.5 600# |
| M - Material of construction |
|---|
| M1 SA 516 GR.70 (BODY) & ASTM A 105 (FLANGES) |
| M2 SA 516 GR.70 (BODY) & SA 352 LF2 (FLANGES) |
| M3 IS 2062 GR.B (BODY) & ASTM A 105 (FLANGES) |
| M4 SS 304 (BODY) & ASTM A 182 F 304 (FLANGES) |
| M5 SS 316 (BODY) & ASTM A 182 F 316 ( FLANGES) |
| M6 SA 106 GR B ( BODY) & ASTM A 105 ( FLANGES) |
| M7 SA 333 GR 6 ( BODY ) & SA 350 LF2 ( FLANGES) |
| * NOTE : All gaskets/Seals will be SS 304 inner /outer with PTFE/Graphite filler and stud /nuts will be ASTM A 193 Gr.B7 / A 194 Gr.2H |
| F - Flow range ( It Can be any between specified value) | |||
|---|---|---|---|
| F0 0 - 1000 LPM | F1 0 - 1500 LPM | F2 0 - 2500 LPM | F3 0 - 4000 LPM |
| F4 0 - 5000 LPM | F5 0 - 7500 LPM | F6 0 - 10000 LPM | |
| F7 0 - 15000 LPM | F8 0 - 20000 LPM | F9 - 0 to Customer Specific Flow rate | |
| P - Operating pressure (Normal) |
|---|
| P1 0 - 6 KG/CM2 |
| P2 0 - 10 KG/CM2 |
| P3 0 - 15 KG/CM2 |
| P4 0 - 25 KG/CM2 |
| P5 0 - 35 KG/CM2 |
| P6 0 - 60 KG/CM2 |
| A - Accessories |
|---|
| A1 Ball valve for drain and vent |
| A2 Thermal safety valve / Pressure Relief Valve |
| A3 pressure gauge |
| A4 companion flange with studs and gasket |
| A5 Flame Arrestor |
| If you want to order all items kindly insert as A12345. |
