Precision in Measurement: Positive Displacement meters, being volumetric measuring devices, lack the ability to differentiate between liquid, air, and vapor. When these substances enter the measuring device concurrently, it can introduce measurable errors. Our Air Eliminators play a crucial role in ensuring the accuracy of liquid measurement by preventing the detrimental effects of air and vapor on the meter's performance.
Preventing Accuracy Compromises: A significant volume of free air or vapor entrapped in the piping system not only compromises meter accuracy but can also lead to over-speeding and excessive wear or unit failure. Cryogenic's Air Eliminators act as the frontline defense, ensuring that only pristine liquid enters the measuring devices, safeguarding accuracy and prolonging the life of the meter.
Tailored Solutions for Precision: To meet the diverse needs of our clients, we offer a range of Air Eliminators, including Split type Air Eliminators specifically designed for fuels like Aviation Turbine Fuel, where frequent clearing is required. This specialization ensures optimal performance in critical applications.

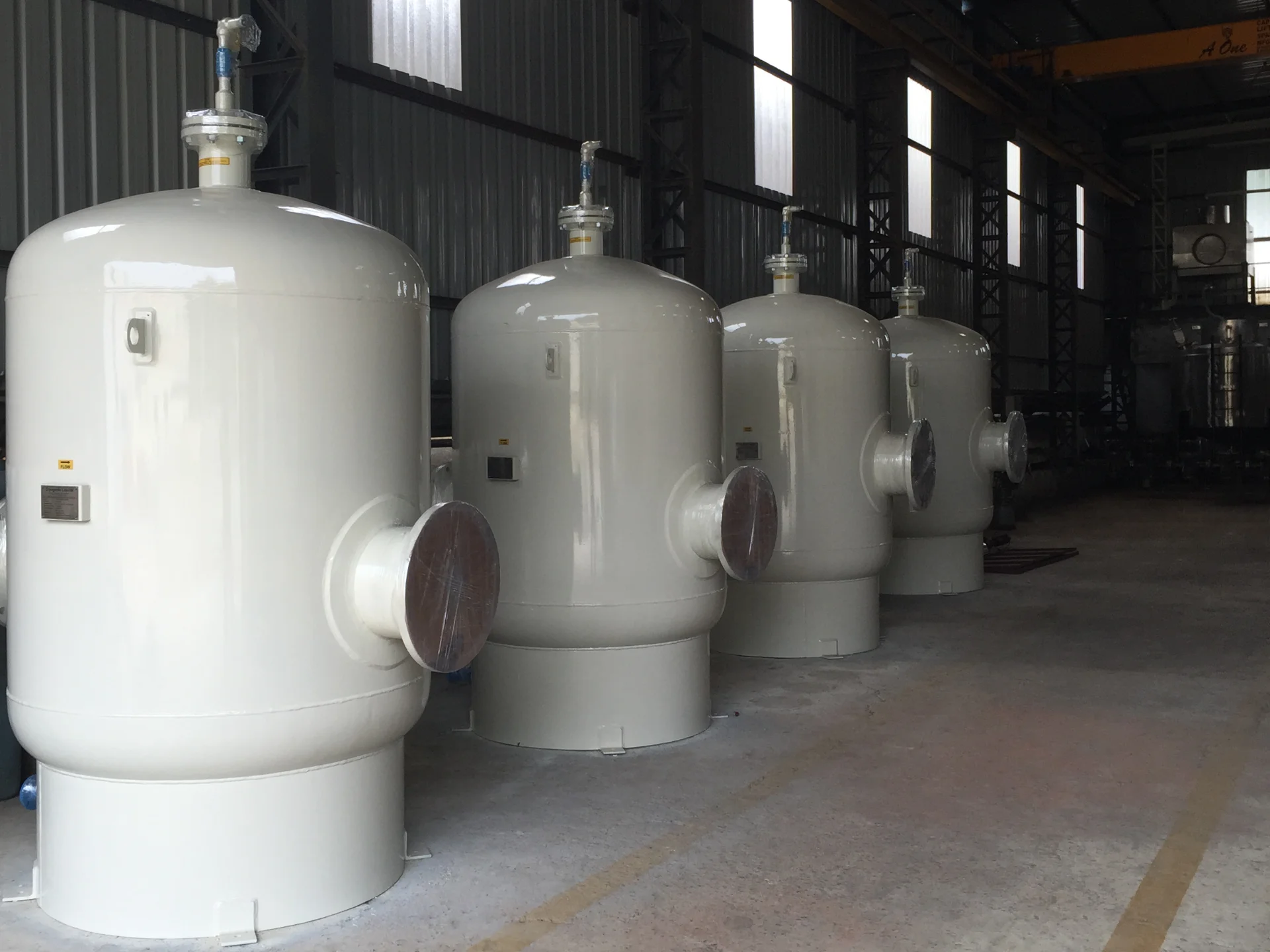

Versatile Sizing and Configurations: Our Air Eliminators are available in a range of sizes, accommodating volumes from 25 liters to 6000 liters, with dimensions spanning from 1.5" to 24". The versatility extends to pressure ratings from 150# to 600#, ensuring compatibility with a wide array of systems. All designs adhere to the latest edition of ASME Section VIII div I, reflecting our commitment to excellence and compliance with industry standards.
Proven Track Record: Benefit from the confidence derived from our track record, with over 2100 units supplied by the year 2014. This extensive experience underscores our dedication to delivering high-quality Air Eliminators that consistently meet and exceed customer expectations.
Choose Cryogenic's Air Eliminators for unparalleled precision, reliability, and longevity in your liquid measurement systems. Elevate your operational efficiency with a trusted solution from a proven industry leader.

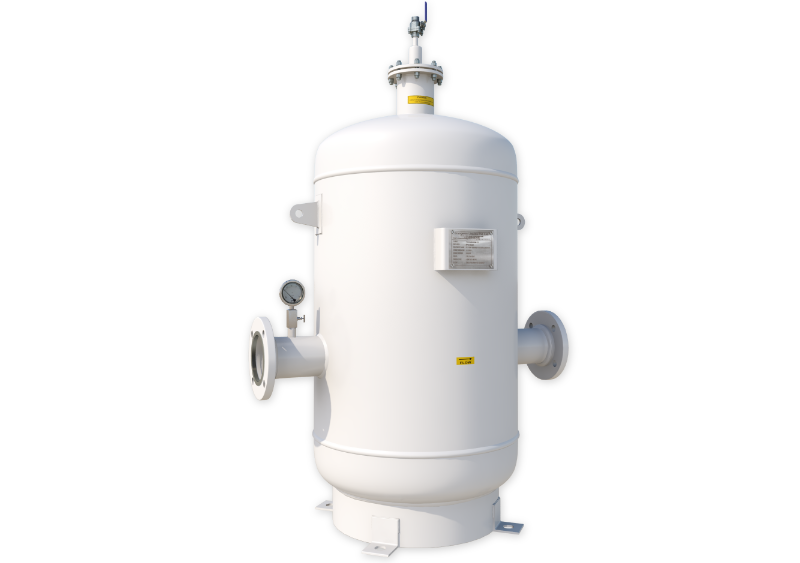

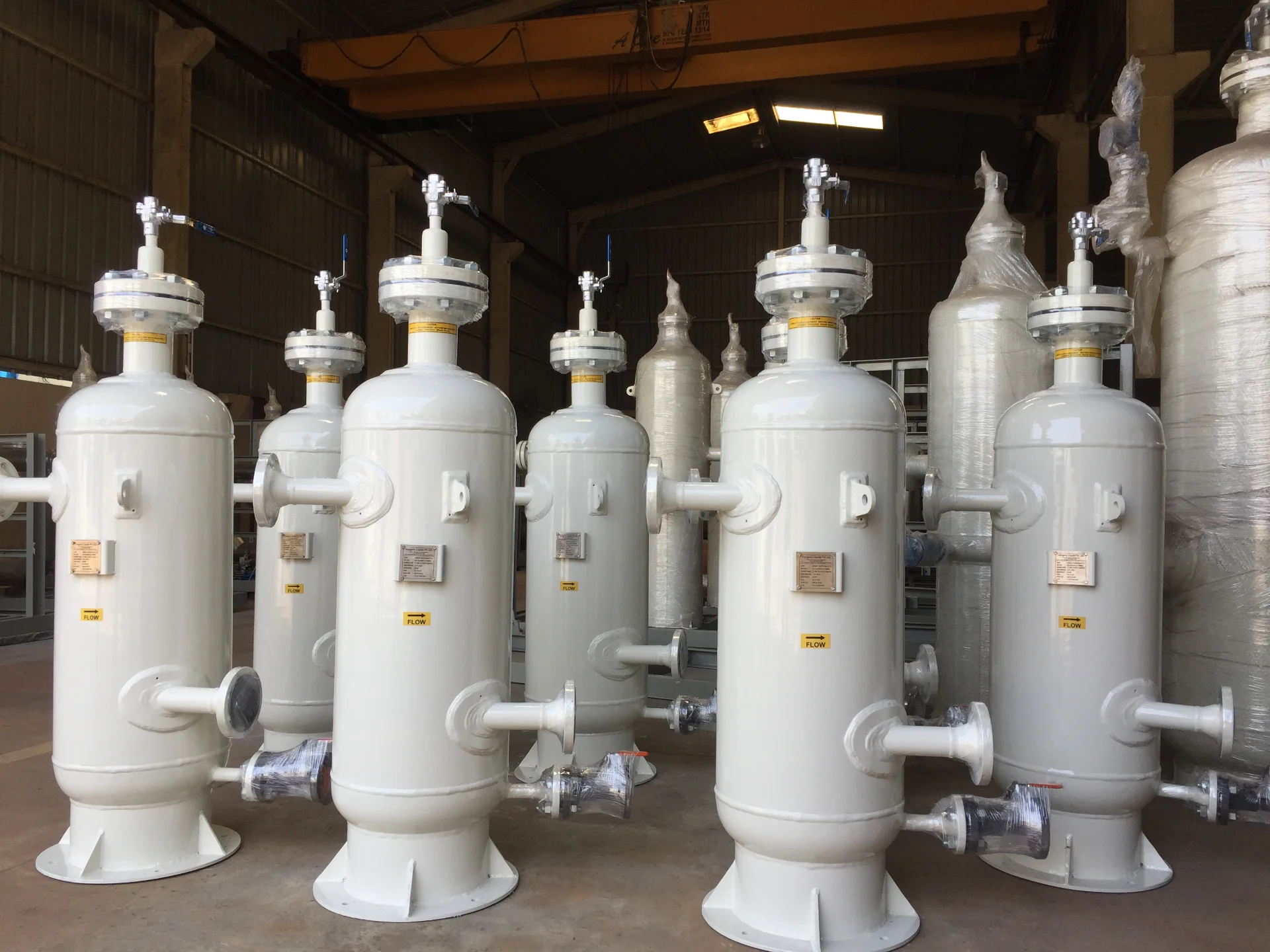

The Air Eliminator by Cryogenic operates on a sophisticated principle to ensure the efficient separation of air and vapor from liquids, maintaining the integrity of the measurement process without any liquid escape. Here's a detailed breakdown of its operation:
1. Top Nozzle Housing with Float Assembly:
The Air Eliminator features a top nozzle housing that houses a float assembly comprising a float and guide rod. This assembly is pivotal to the precise functioning of the device.
2. Entrance of Product and Air/Vapor:
As the liquid product, accompanied by air or vapor, enters through the inlet nozzle, it is directed into a spacious open vessel area. In this area, the fluid velocity decreases, allowing the liquid to stabilize.
3. Baffle Plate Separation:
The flow then encounters a baffle plate, strategically positioned to separate liquid from air and vapor. The separated air and vapor ascend to the top of the vessel and are released through the float assembly.
4. Closure of Orifice Area:
As the liquid level rises and reaches the float assembly, it exerts force, pushing the assembly up and effectively closing the orifice area. This ensures that no further air or vapor can escape into the system.
5. Accumulation of Air / Vapor in Top Housing:
In case additional air or vapor enters the system, it accumulates in the top housing. When a sufficient amount of air or vapor collects, it exerts downward force on the liquid level, reducing the buoyant force acting on the float.
6. Release of Air/Vapor:
As the collected air or vapor forces the liquid level down, the buoyant force on the float decreases, causing the float to drop down. This opens the orifice seat, allowing the accumulated air or vapor to escape.
7. Fluid Replacement and Buoyancy Increase:
Once the air is replaced by fluid, the buoyancy of the float increases, allowing it to rise again and close the orifice seat. This cyclical process ensures the continuous and effective elimination of air and vapor from the system.
Additionally, Cryogenic offers Split-type Air Eliminators for applications like Aviation Turbine Fuel, where frequent clearing is necessary. Available in a range of sizes from 25 liters to 6000 liters, with dimensions spanning from 1" to 24" and pressure ratings from 150# to 600#, our designs adhere to ASME Section VIII div I standards. With a notable track record of supplying over 3000 units by 2018, trust Cryogenic for precision, reliability, and innovation in air elimination technology.

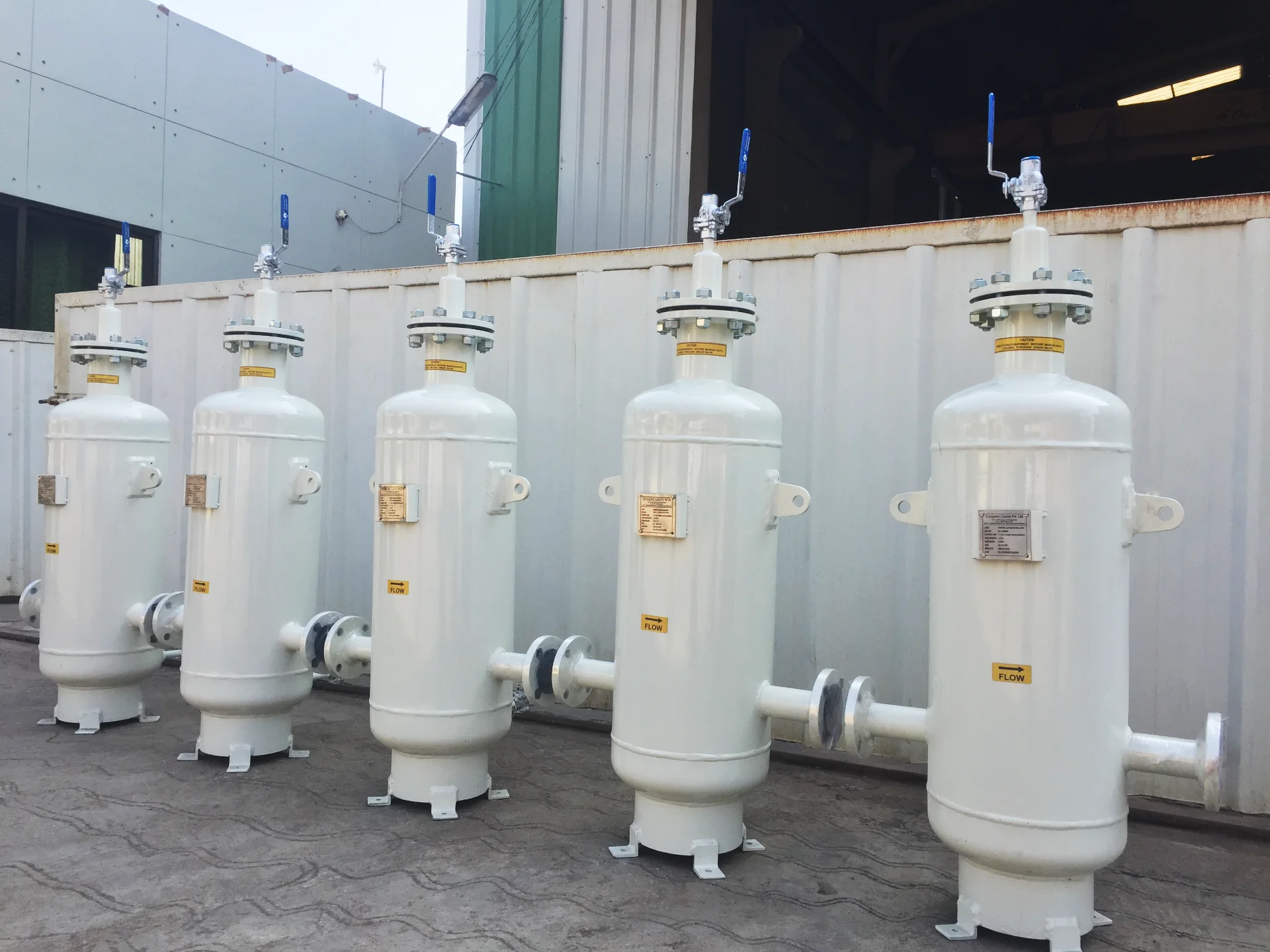

Discover the multitude of benefits that come with Cryogenic's Air Eliminators, setting a new standard in precision, reliability, and ease of maintenance:
1. Bidirectional Flow Capability:
Enjoy the flexibility of bidirectional flow installation, allowing seamless integration for both left-to-right and right-to-left flow directions. This adaptability ensures ease of installation in diverse piping configurations.
2. Space-Efficient Vertical Design:
The vertical design of our Air Eliminators optimizes installation space, making it a space-efficient solution for a variety of installations.
3. High Capacity Air Elimination:
Benefit from a high-capacity air elimination system that not only enhances the accuracy of metering devices but also ensures the safety of the entire metering system.

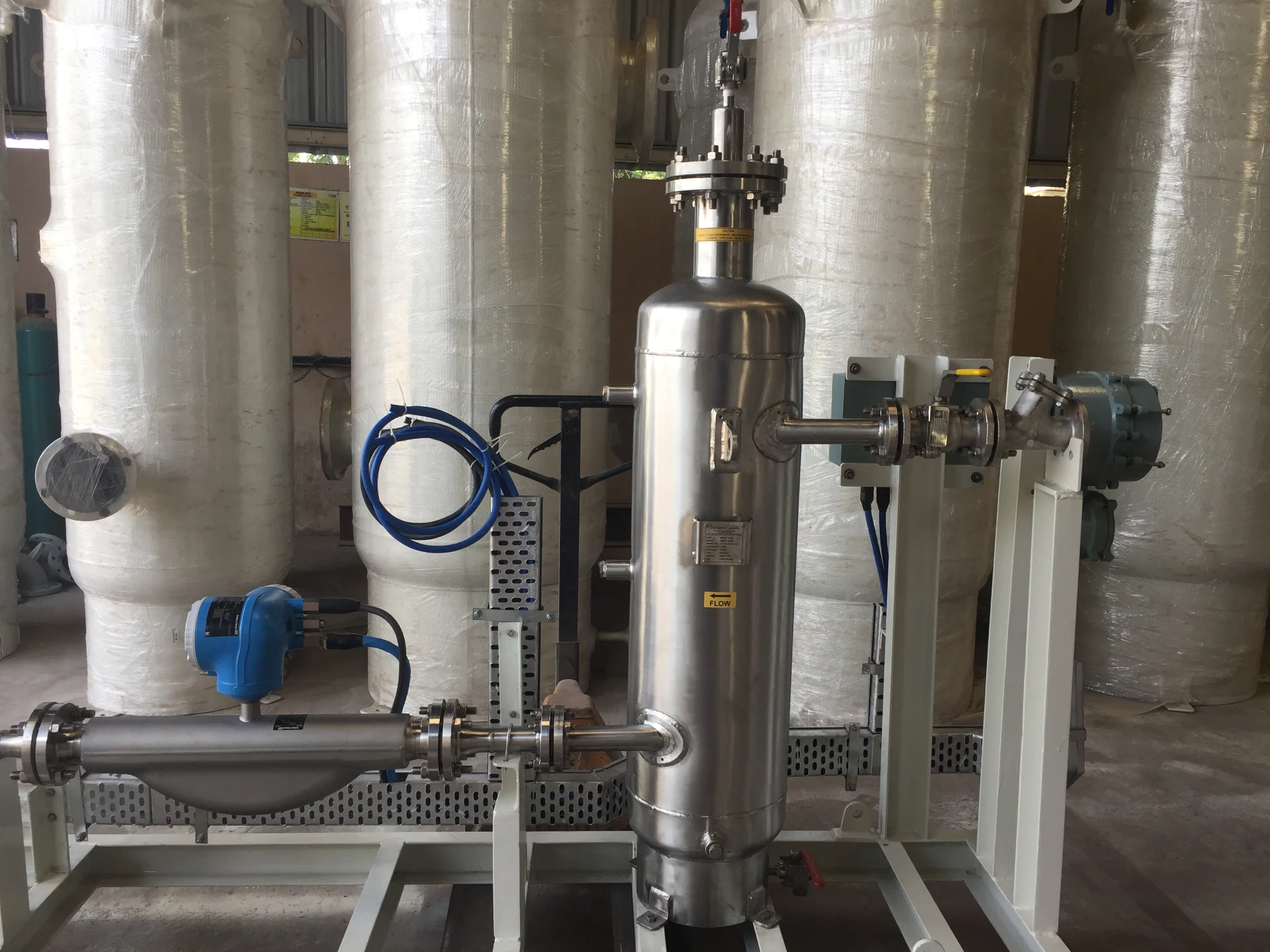

4. Compatibility with Various Metering Devices:

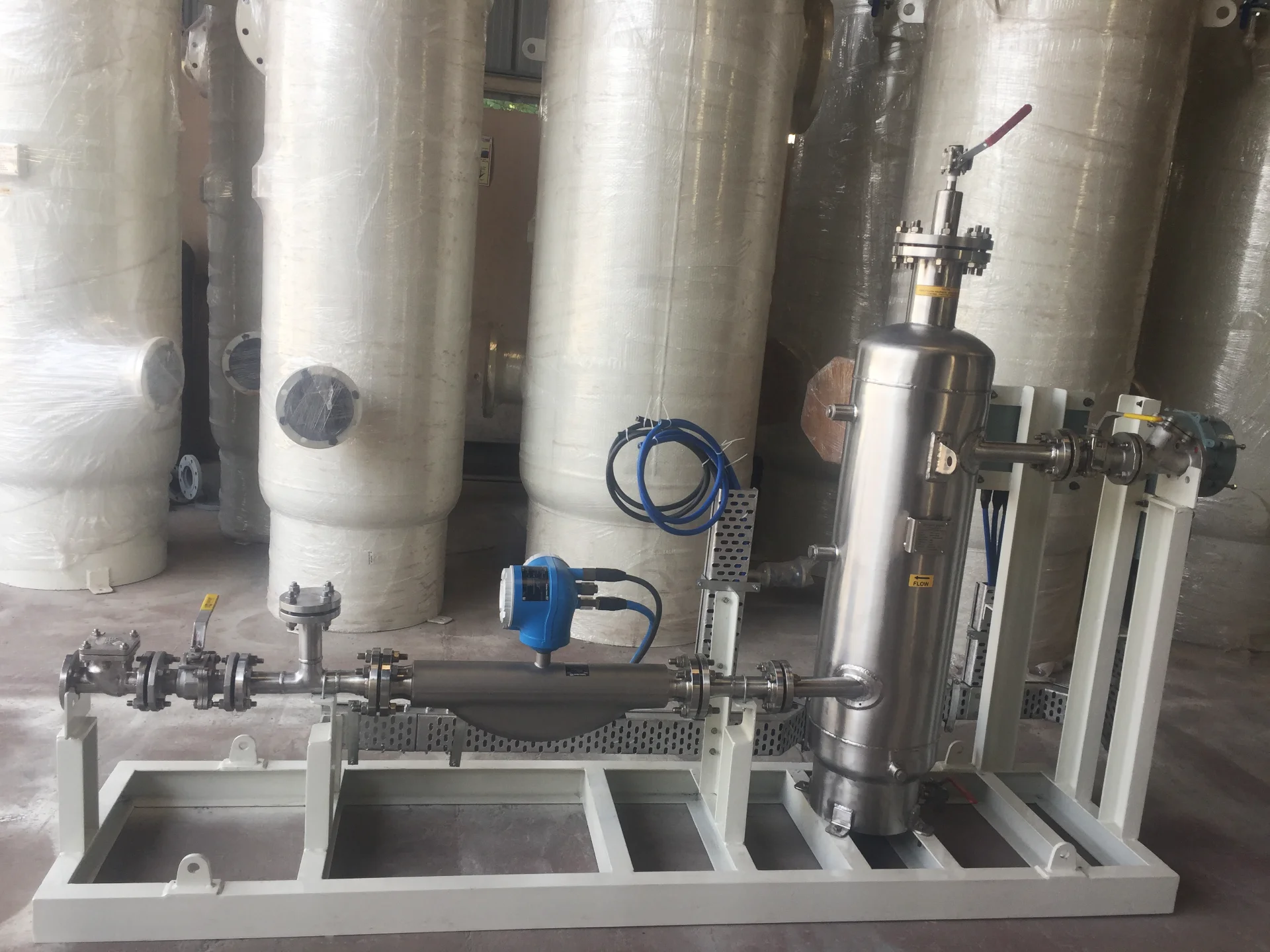

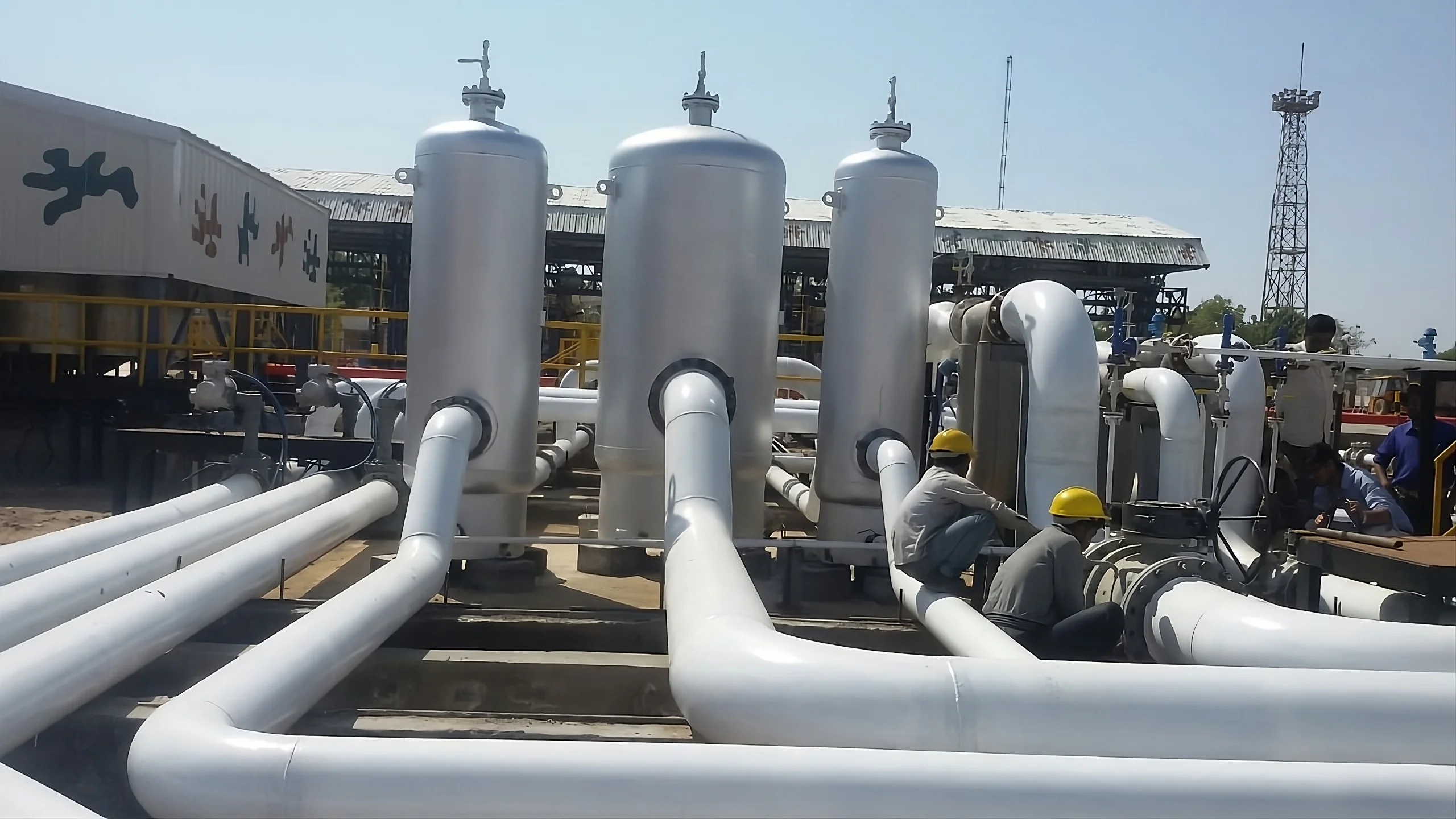

Our Air Eliminators feature a simple interface that seamlessly integrates with Positive Displacement Meters, Mass Flow Meters, and Turbine Meters, enhancing their performance and reliability.
5. Enhanced System Protection with Thermal Relief Valve:
When used in conjunction with a Thermal Relief Valve, our Air Eliminators provide comprehensive protection to all system components, ensuring the longevity and reliability of the entire system.
6. Precise and Accurate Measurement:
Ensure accurate liquid measurement with our Air Eliminators, preventing errors caused by the presence of air and vapor in the measuring devices.
7. Simplified Maintenance Design:
Experience hassle-free maintenance with our Air Eliminators, designed with simplicity in mind. No complicated design elements make maintenance straightforward and efficient.
8. Zero Drain Facility:
The zero drain facility in our Air Eliminators enhances operational convenience, allowing for efficient system drainage without complications.
9. Stainless Steel Internals:
Trust in the durability and corrosion resistance of our Air Eliminators, featuring stainless steel internals that ensure longevity and reliability in diverse operating conditions.
10. Customizable Retention Time:
Tailor the retention time of our Air Eliminators to your specific requirements, offering higher customization options for optimal system performance.
Elevate your operational efficiency with Cryogenic's Air Eliminators, where innovation meets practicality, ensuring a seamless and reliable air elimination solution for your liquid measurement systems.
| S0 - Nominal Size mm | ||||
|---|---|---|---|---|
| S0- 1.5"( 40 mm) | S1 - 2" (50 mm) | S2 - 3" (80 mm) | S3 - 4" (100 mm) | S4 - 6" (150 mm) |
| S5 - 8" (200 mm) | S6 - 10" (250 mm) | S7 - 12" (300 mm) | S8 - 14" (350 mm) | S9 - 16" (400 mm) |
| S10 - 18" (450 mm) | S11 - 20" (500 mm) | S12 - 24" (600 mm) | S13 - As per customer's requirment | |
| R - Rating (Standard flange are slip on race face type if Weld Neck type is required please specify) |
|---|
| R1 - ANSI B 16.5 150# |
| R2 - ANSI B 16.5 300# |
| R3 - ANSI B 16.5 600# |
| M - Material of construction |
|---|
| M1 SA 516 Gr.70 (Body) & ASTM A 105 (Flanges) |
| M2 SA 516 Gr.70 (Body) & SA 350 LF2 (Flanges) |
| M3 IS 2062 Gr.B (Body) & ASTM A 105 (Flanges) |
| M4 SS 304 (Body) & ASTM A 182 F 304 (Flanges) |
| M5 SS 316 (Body) & ASTM A 182 F 316 ( Flanges) |
| M6 SA 106 Gr.B (Body) & ASTM A 105 ( Flanges) |
| M7 SA 333 Gr.6 (Body) & SA 350 LF2 ( Flanges) |
| F - Flow range ( It Can be any between specified value) | |||
|---|---|---|---|
| F0 0 - 1000 LPM | F1 0 - 1500 LPM | F2 0 - 2500 LPM | F3 0 - 4000 LPM |
| F4 0 - 5000 LPM | F5 0 - 7500 LPM | F6 0 - 10000 LPM | |
| F7 0 - 15000 LPM | F8 0 - 20000 LPM | F9 - 0 to Customer Specific Flow rate | |
| P - Operating pressure (Normal) |
|---|
| P1 0 - 6 KG/CM2 |
| P2 0 - 10 KG/CM2 |
| P3 0 - 15 KG/CM2 |
| P4 0 - 25 KG/CM2 |
| P5 0 - 35 KG/CM2 |
| P6 0 - 60 KG/CM2 |
| P7 0 - 100 KG/CM2 |
| A - Accessories |
|---|
| A1 Ball valve for drain and vent |
| A2 Thermal safety valve / Pressure Relief Valve |
| A3 pressure gauge |
| A4 companion flange with studs and gasket |
| A5 Flame Arrestor |
| If you want to order all items kindly insert as A12345. |
