Presenting Cryogenic's Additive Dosing System, a highly flexible and fully automated solution for the continuous dosing of additives into the main product line.
Tailored to accommodate various process parameters and loading points, our additive dosing system facilitates the seamless production of mixed products with efficiency and cost-effectiveness.
1. Flexibility for Different Process Parameters:
Cryogenic provides different dosing skids tailored to the number of loading points, ensuring adaptability to a variety of process parameters.
2. Automated Production of Mixed Products:
The in-line dosing system enables the automatic and economic production of mixed products, enhancing operational efficiency.
3. Comprehensive Components:

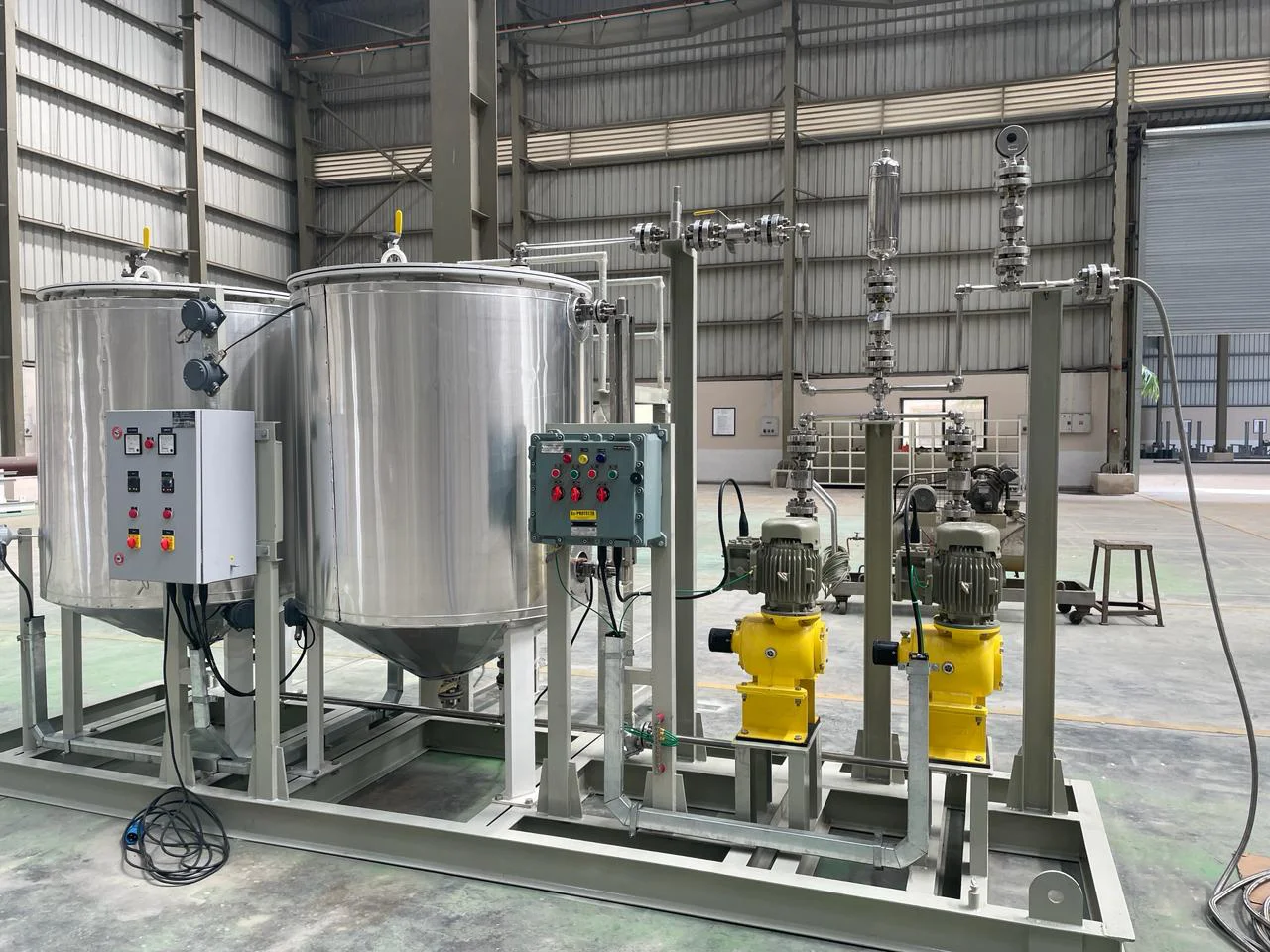

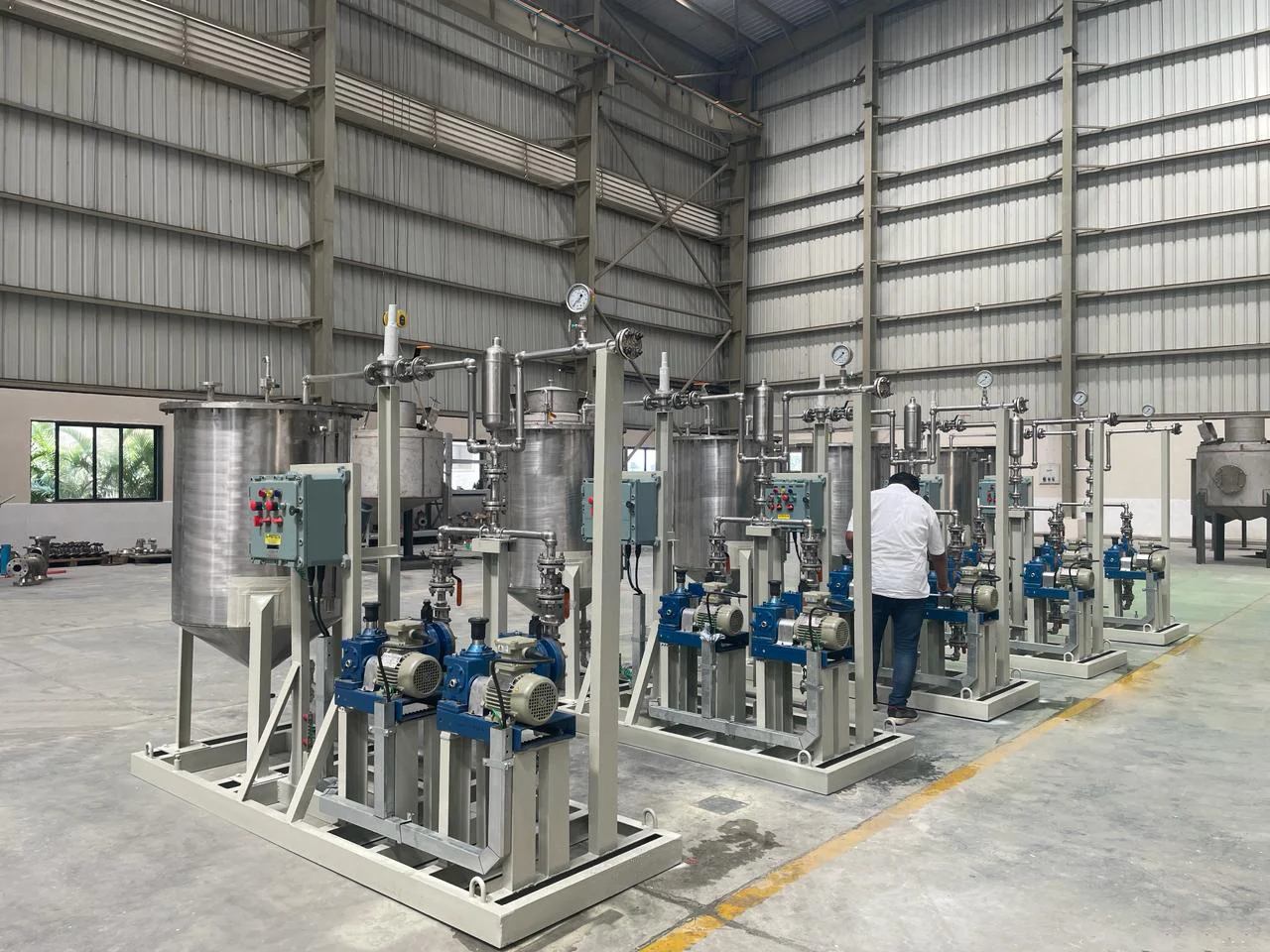

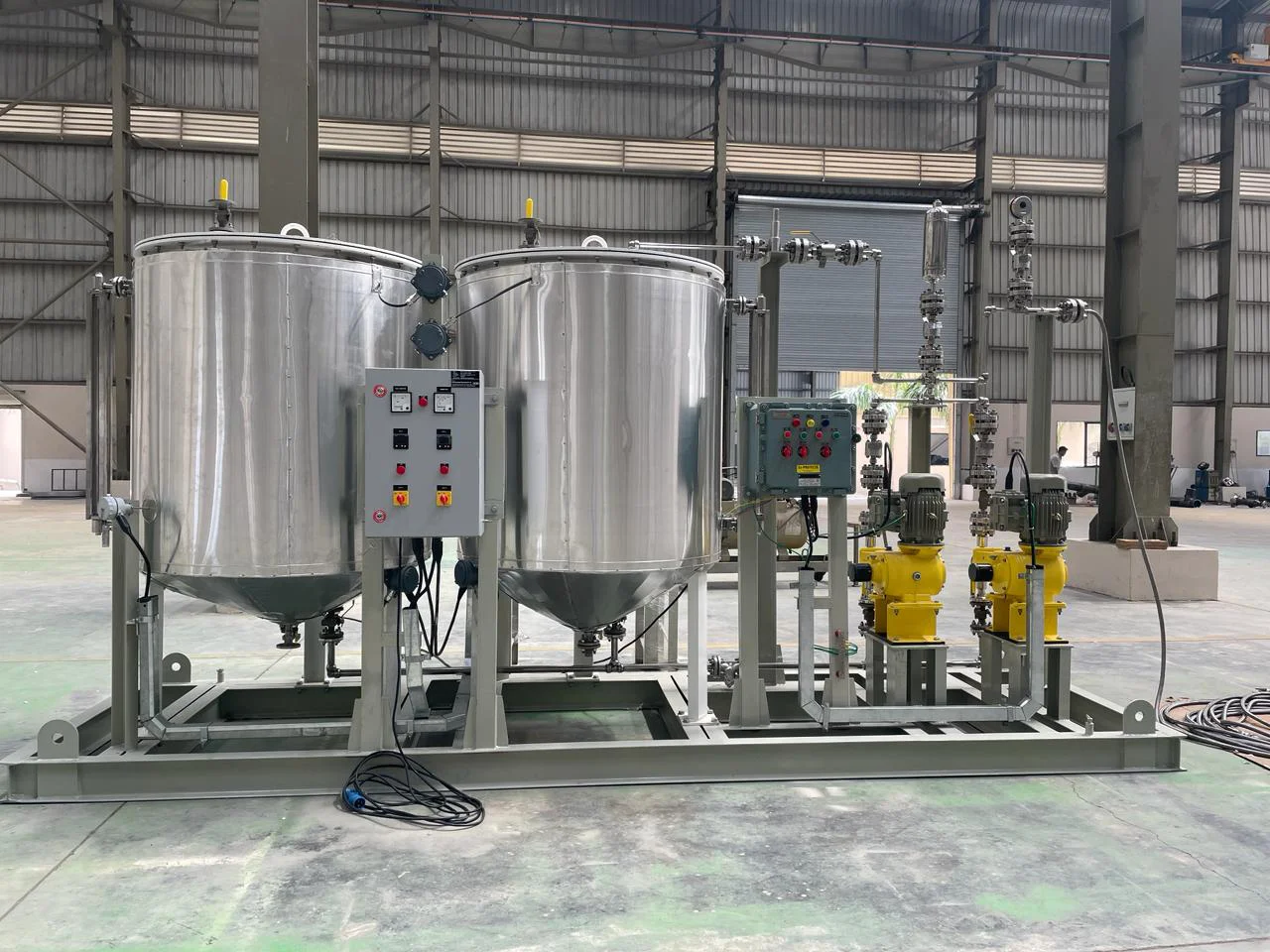

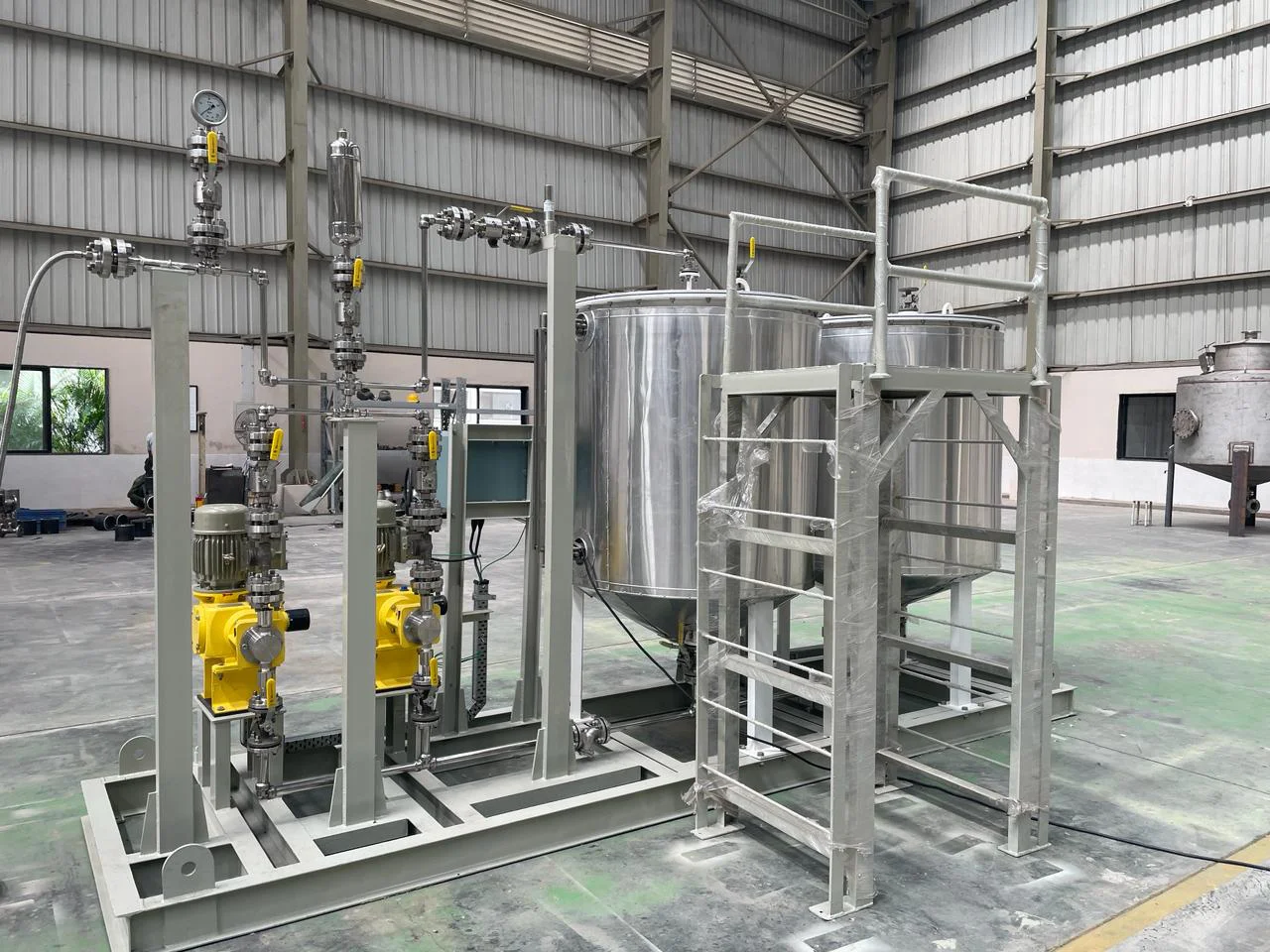

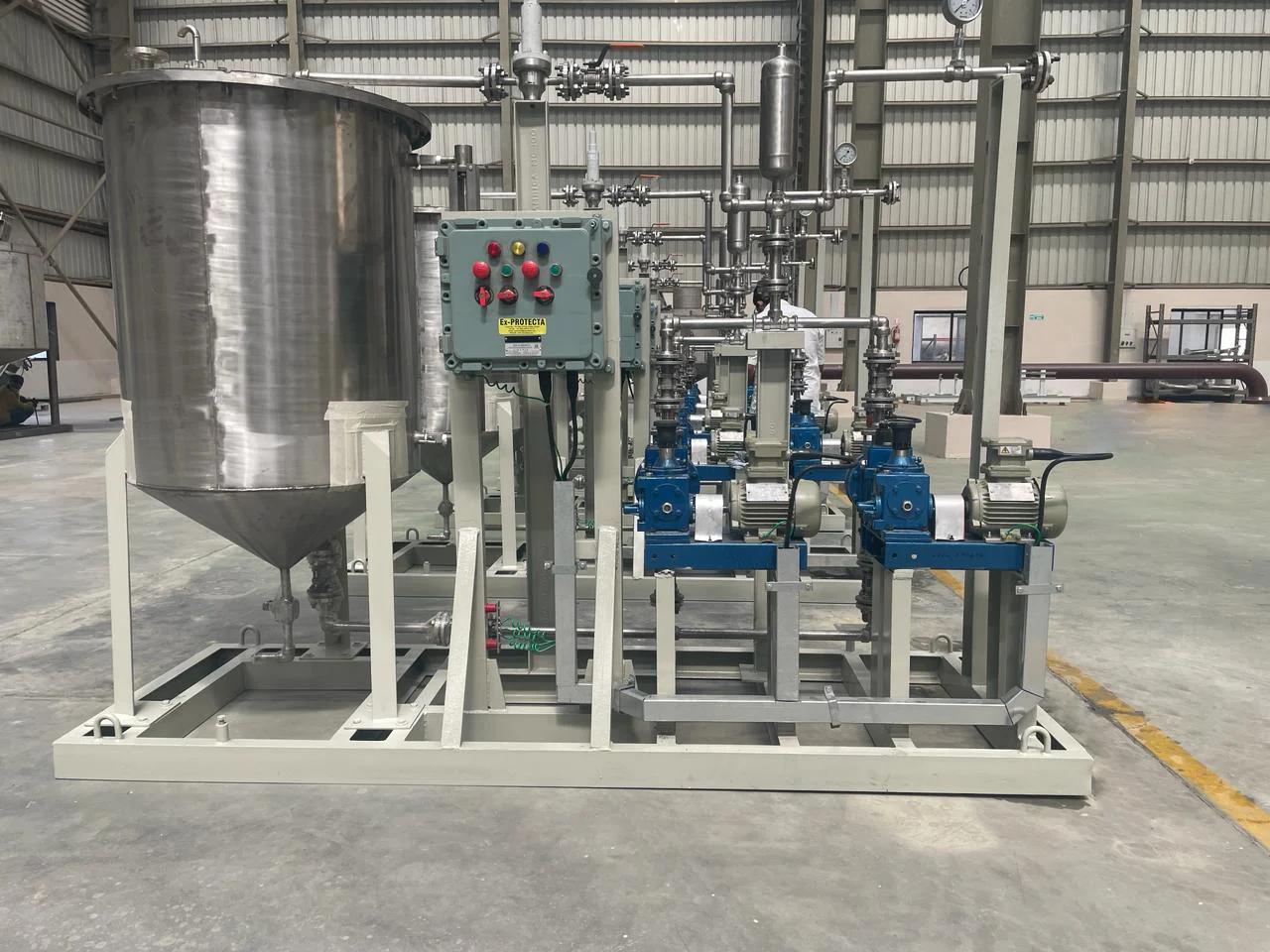

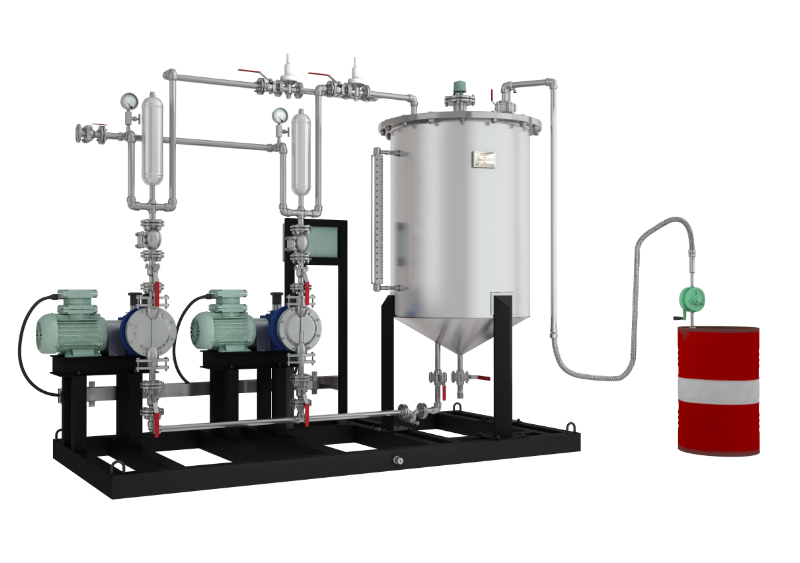

The system comprises essential components, including an additive storage tank, metering pump with a flameproof motor, strainer, pulsation dampener, pressure gauge, non-return valve, ball valve, back-pressure valve to maintain dosing pressure, and a base skid. Additionally, a product loading pump (manual or pneumatically operated) can be supplied as needed.
4. Fuel Coloring Capability:
The additive dosing system is versatile and can be utilized for fuel coloring applications, such as Blue dye and marker dosing systems.
5. Complete Wiring and Control Panel:
Alongside the skid, Cryogenic provides complete wiring and an electrical control panel for operation. This can be integrated with a batch controller unit or PLC for seamless control and monitoring.
6. Proven Quality and Affordability:
Over 500 units delivered by 2018 stand as a testament to the quality and affordability of Cryogenic's additive dosing systems.
7. Trusted by Major Corporates:
Our additive systems have gained the trust of major corporates, including Indian Oil Corporation Limited, Bharat Petroleum Corporation Limited, and Hindustan Petroleum Corporation Limited.
Cryogenic's Additive Dosing System is designed to meet the demands of diverse industries, providing a reliable and efficient solution for the continuous dosing of additives. Elevate your production processes with our proven and trusted dosing system, ensuring accuracy and precision in every operation.
| M - Material (Tank, Valve, Piping) |
|---|
| M1 SS 304 |
| M2 SS 316 |
| M3 As per customer's requirment |
| C - Tank capacity in litre |
|---|
| C1 100 ltrs |
| C2 200 ltrs |
| C3 300 ltrs |
| C4 500 ltrs |
| C5 1000 ltrs |
| C6 1500 ltrs |
| C7 2000 ltrs |
| C8 As per customer's requirment |
| N - No. of pump with motor |
|---|
| N1 Single pump (Not Recommended) |
| N2 Double pump (Stand By) |
| N3 Three pump |
| N4 Four pump |
| N5 As per customer's requirment |
| T - Type of pump |
|---|
| T1 Plunger type single acting metering pump |
| T2 Plunger type double acting metering pump |
| T3 Diaphragm type metering pump |
| T4 Diaphragm pump with rupture disc detection |
| T5 As per customer's requirment |
| F - Capacity of pump - flow range in litre per hour |
|---|
| F1 0 - 25 LPH |
| F2 0 - 200 LPH |
| F3 0 - 400 LPH |
| F4 0 - 600 LPH |
| F5 0 - 800 LPH |
| F6 0 - 1200 LPH |
| F7 0 - 1600 LPH |
| F8 0 - 2000 LPH |
| F9 0 - 2500 LPH |
| F10 0 - TO specified capacity by client |
| A - Type of additives |
|---|

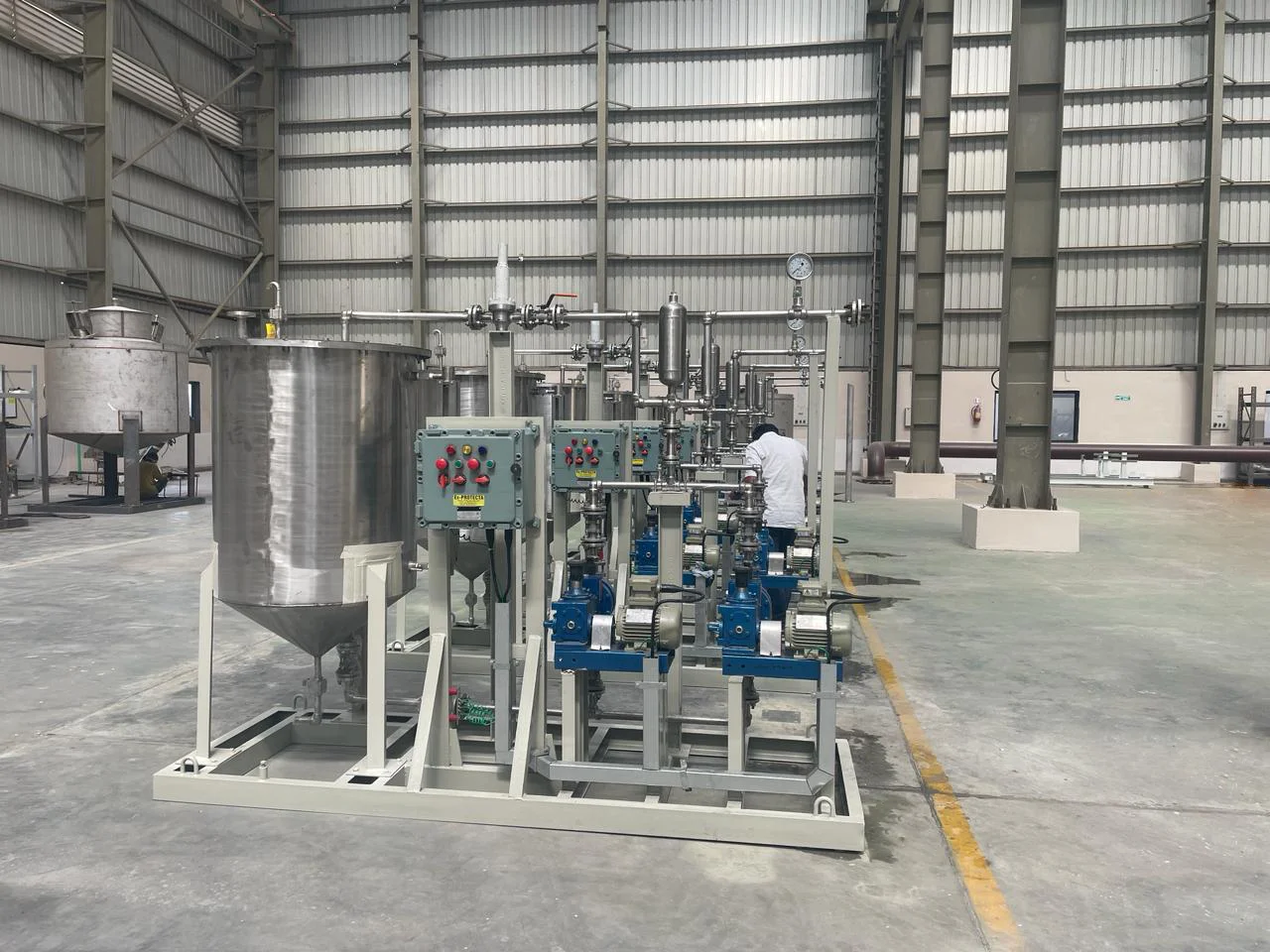

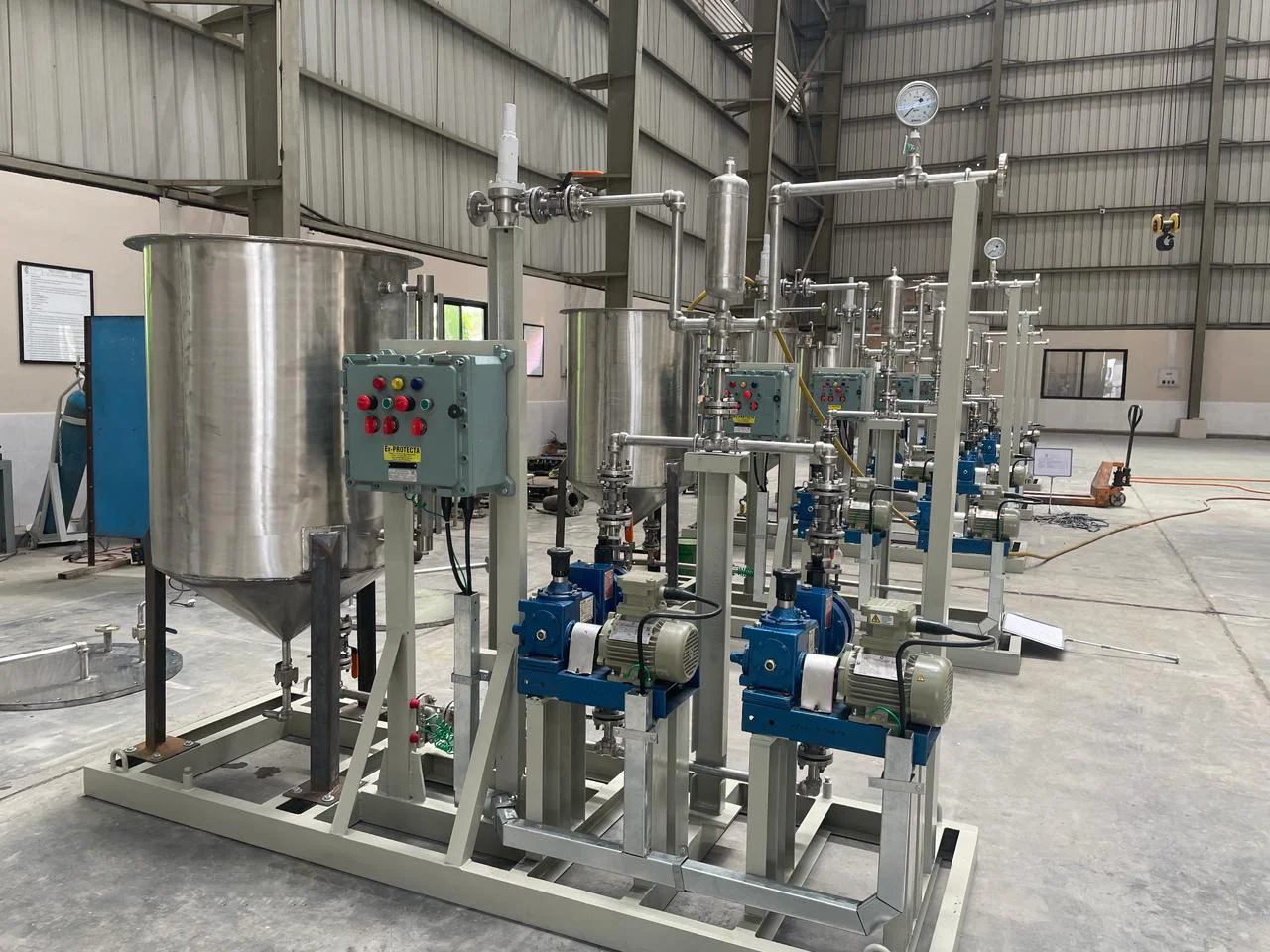

| A1 For HSD, M.S |
| A2 For SKO ( Blue dye and marker) |
| P - Minimum required discharge pressure at discharge of dosing skid |
|---|
| P1 0 - 4 KG/CM2 |
| P2 0 - 8 KG/CM2 |
| P3 0 - 12 KG/CM2 |
| P4 0 - 16 KG/CM2 |
| P5 0 - 20 KG/CM2 |
| P6 0 - 25 KG/CM2 |
| P7 0 - 50 KG/CM2 |
| L - Level switch / level transmitter/ level gauge at additive tank |
|---|
| L1 Level switch top mounted |
| L2 Level transmitter top mounted |
| L3 Magnetic Level gauge with transmitter |
