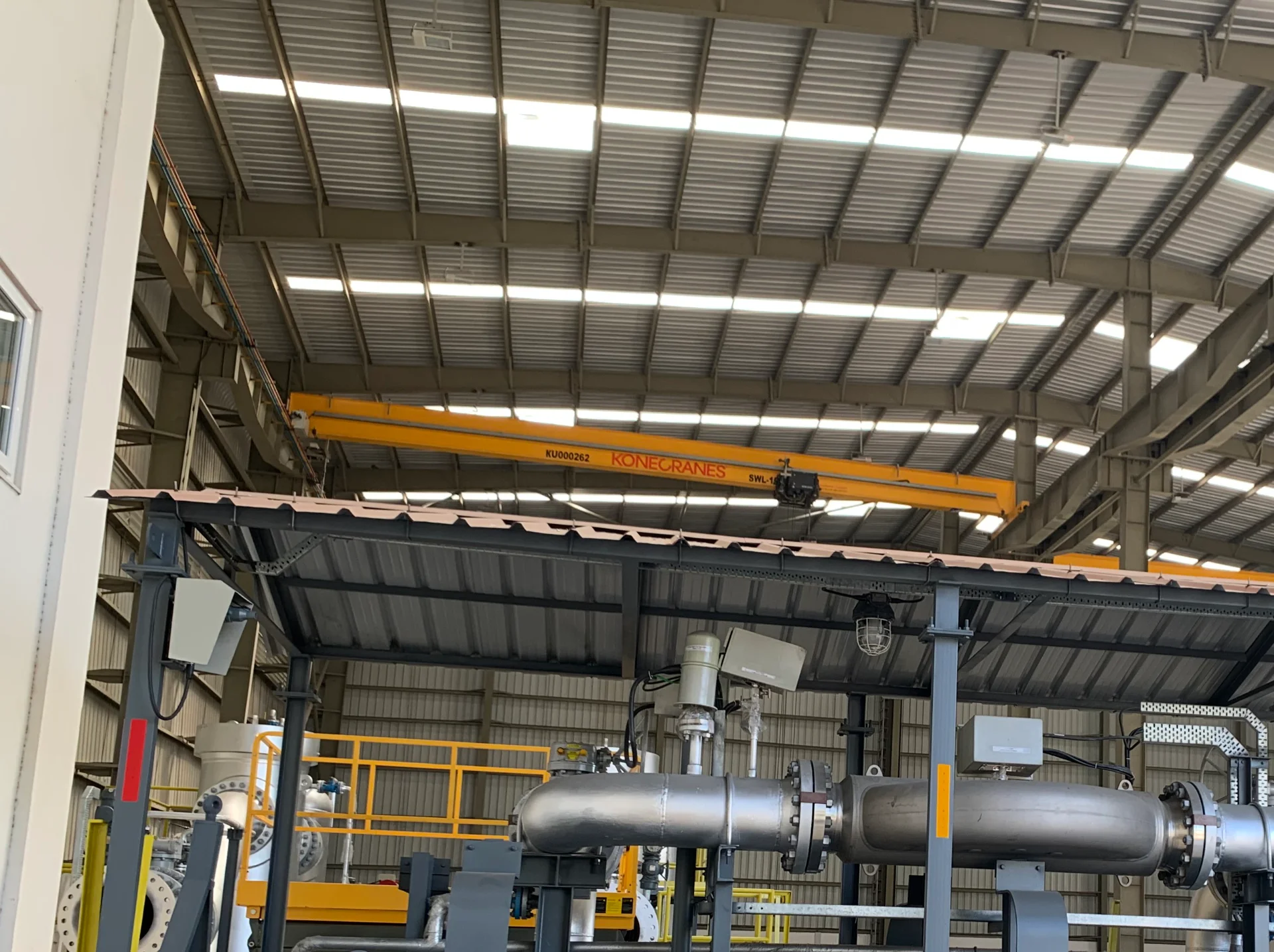

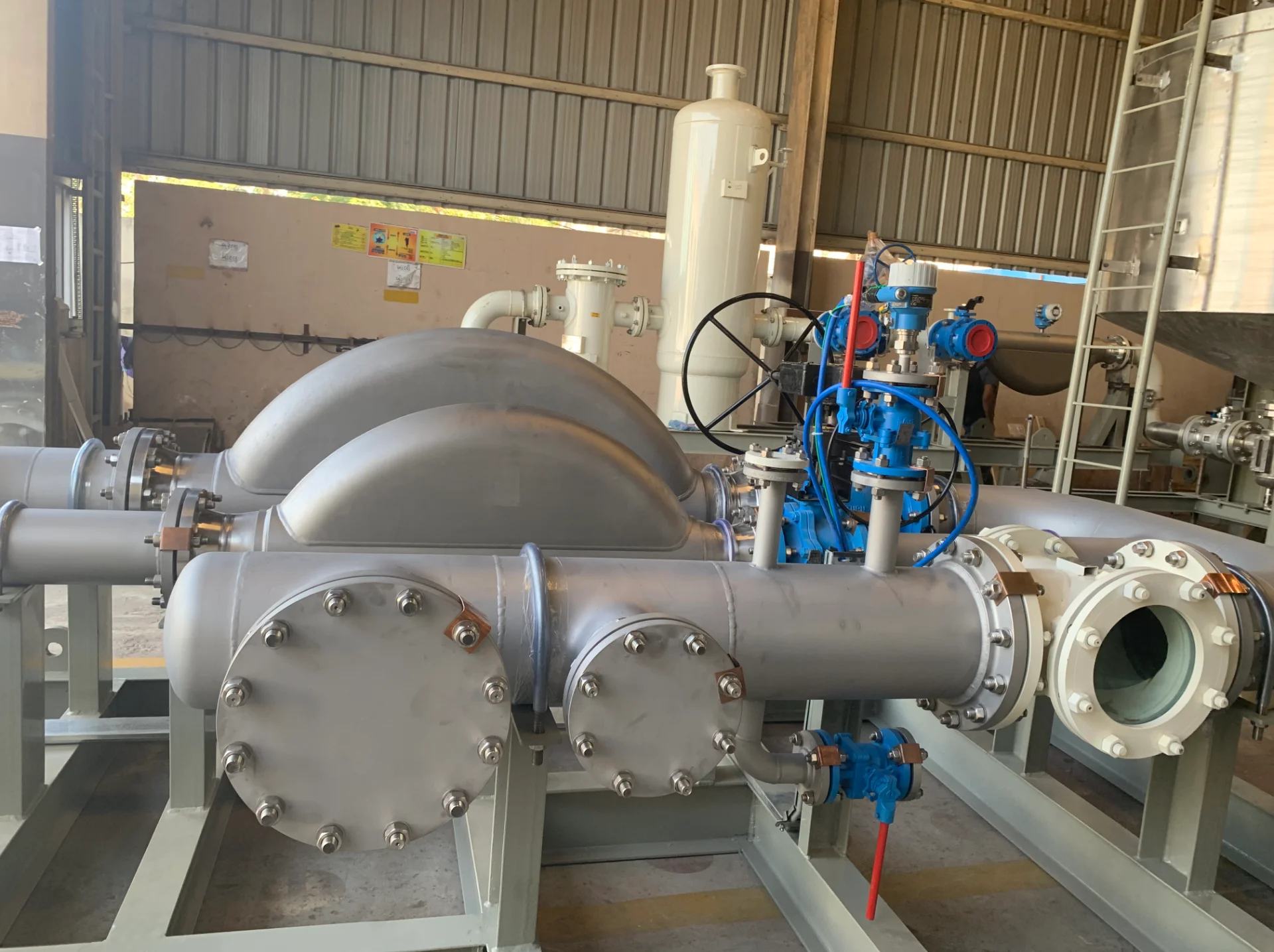

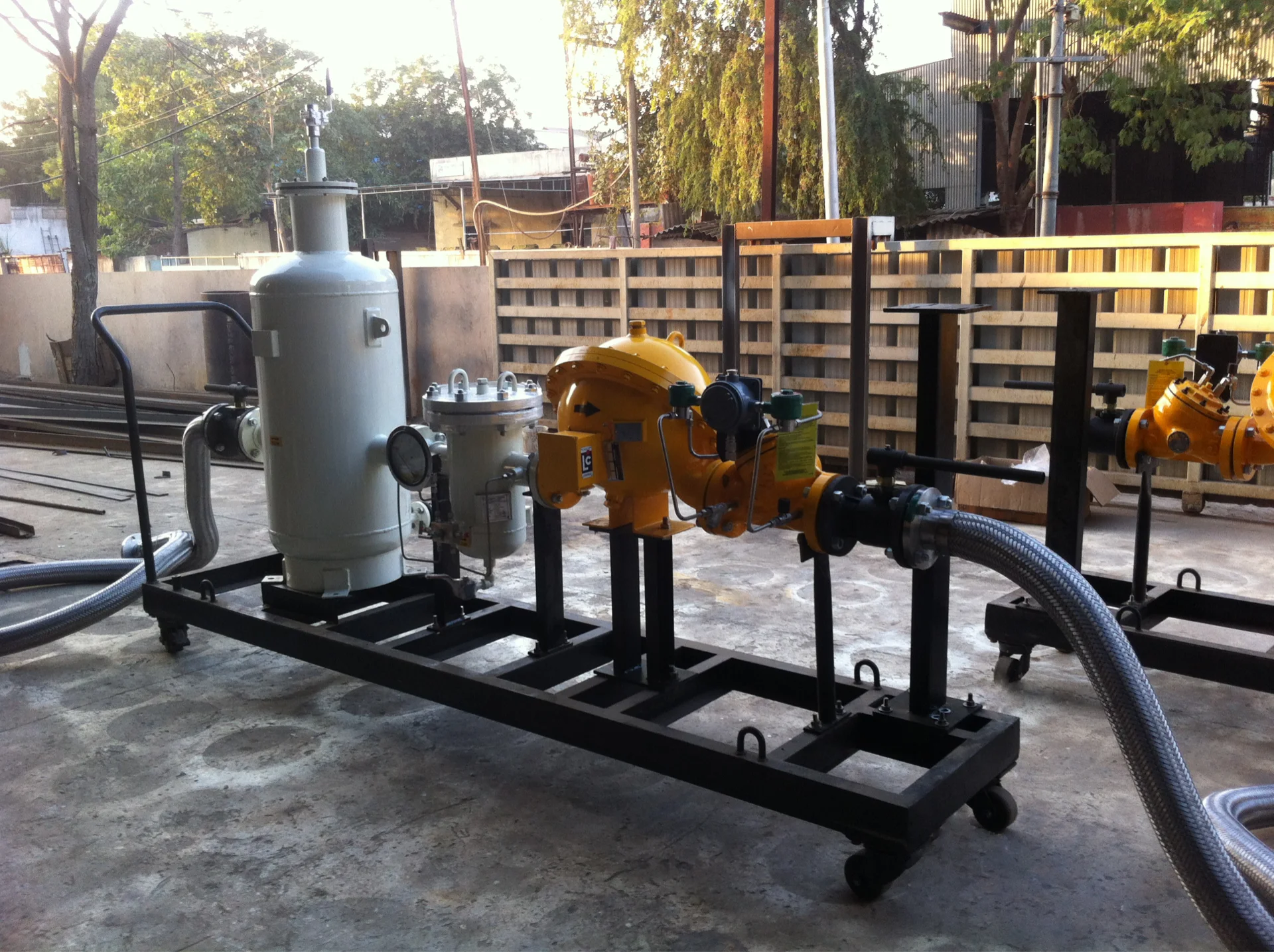

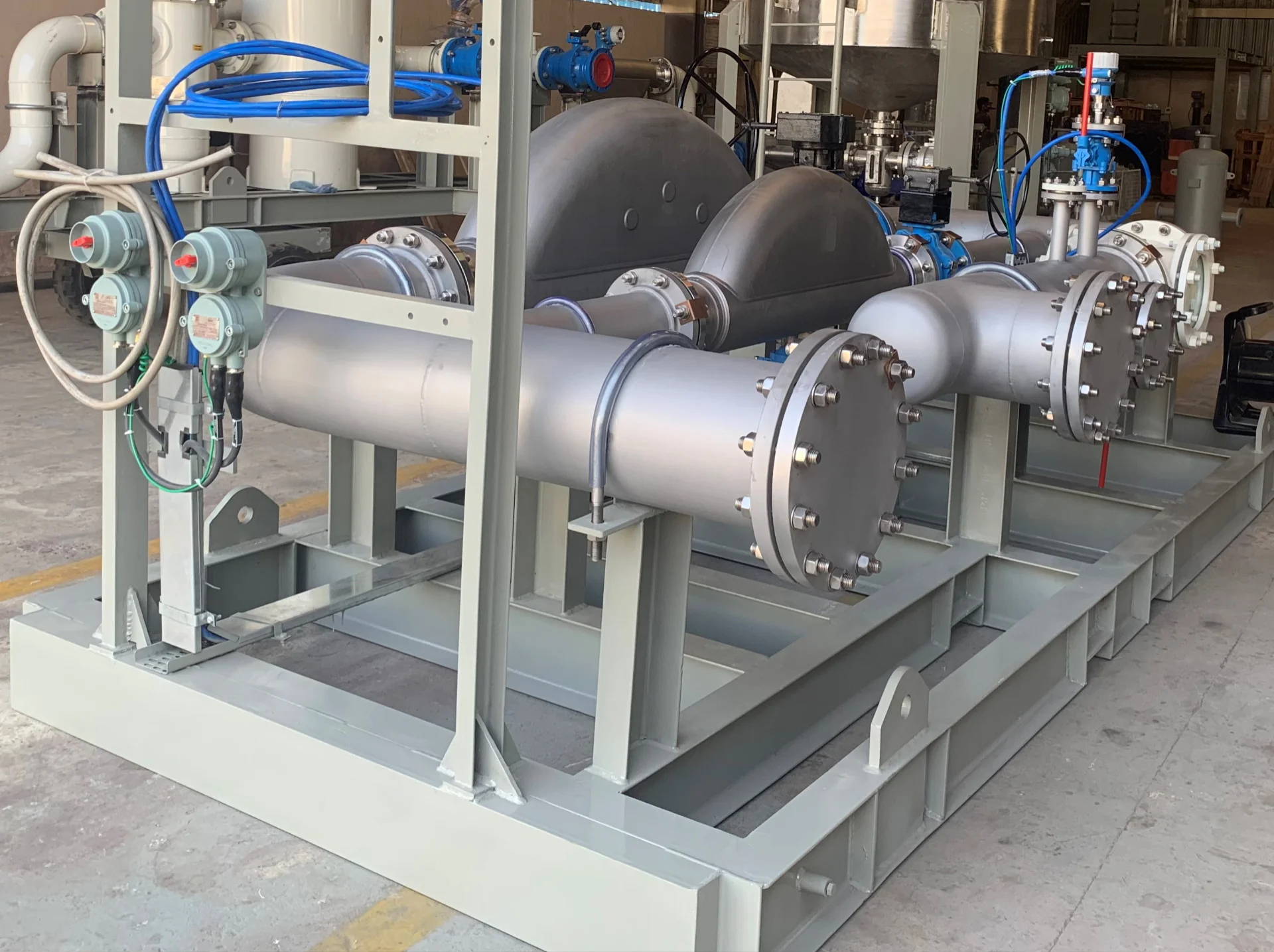

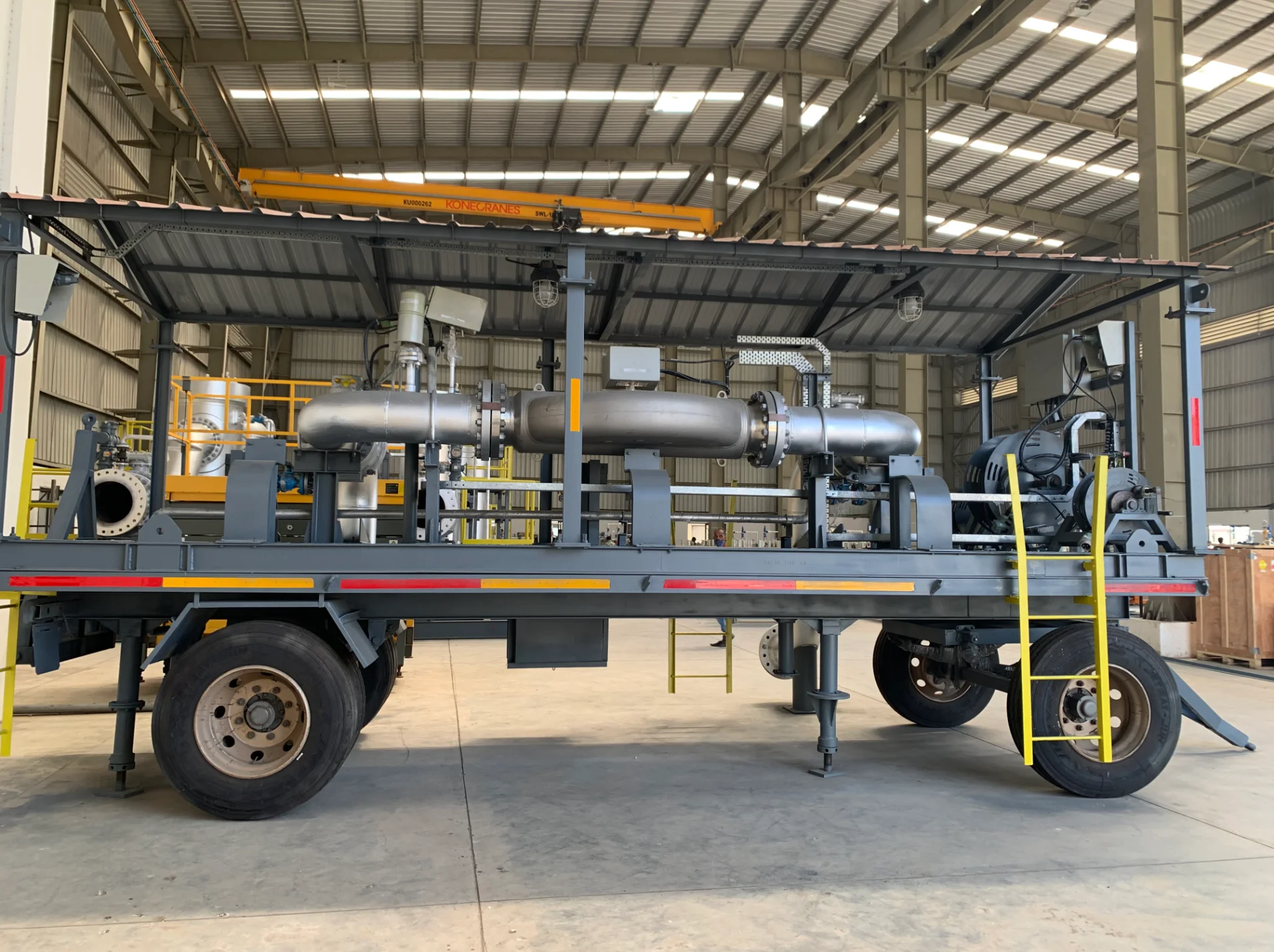

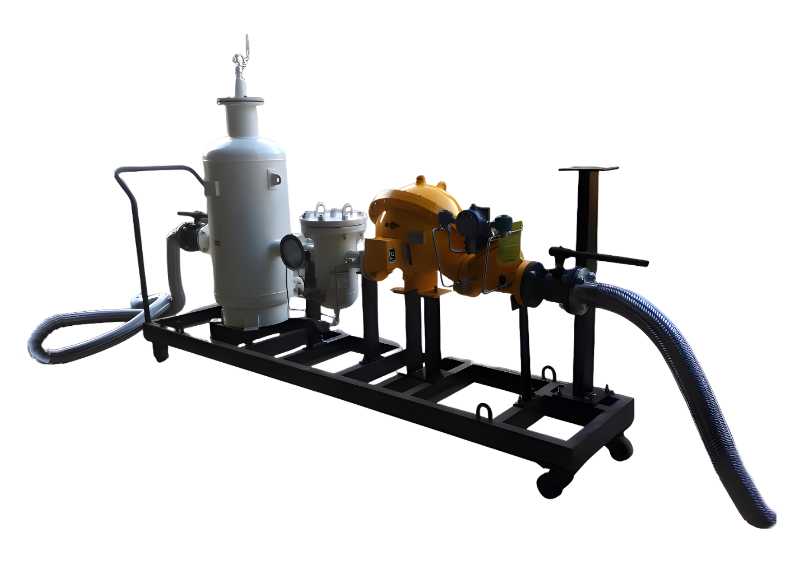

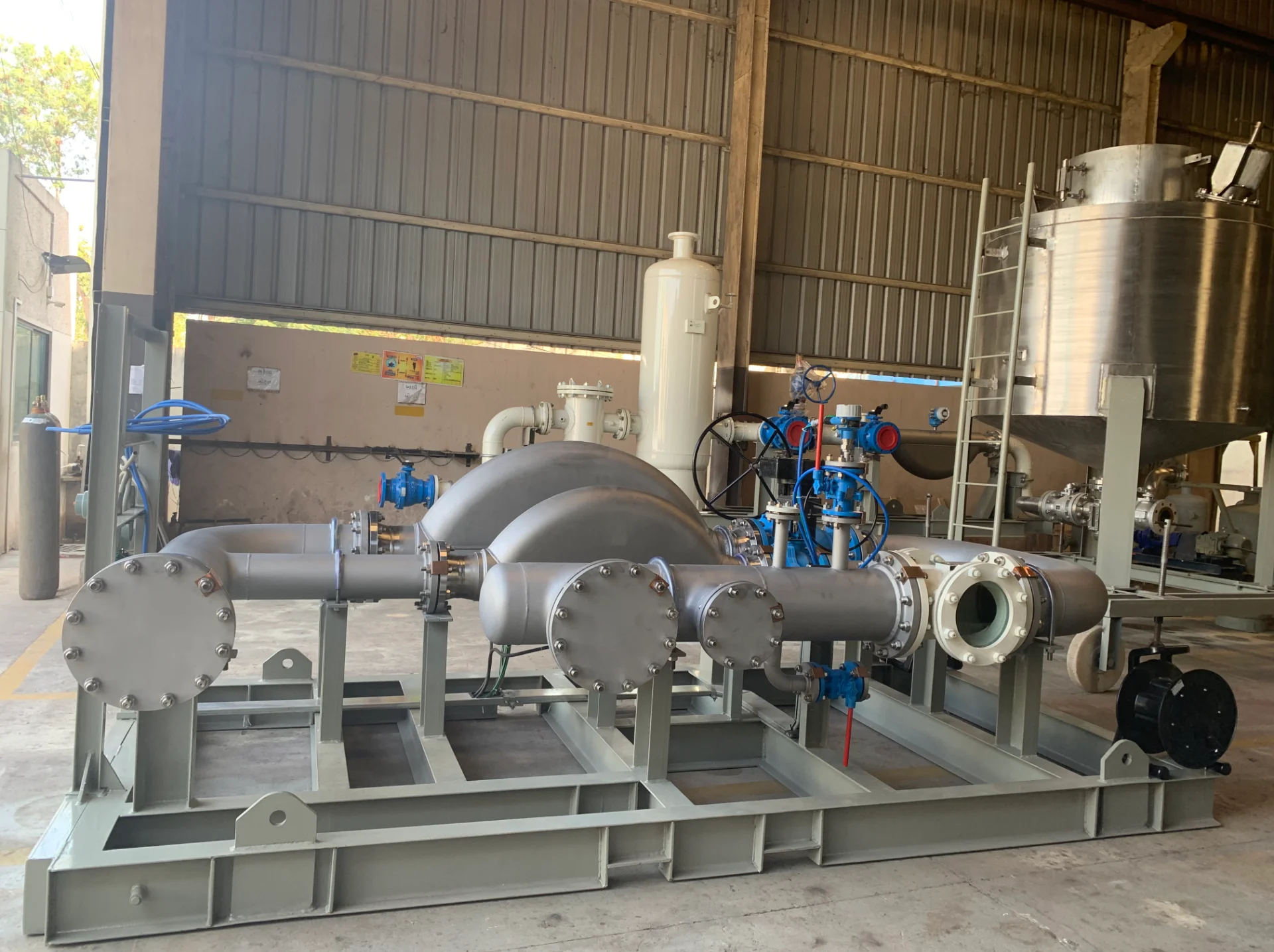

Introducing Cryogenic's Mobile Type Master Flow Metering Skid, a versatile and mobile solution designed for the calibration of flow meters already installed in gantries.
This skid is an integral part of the calibration process, working in series with flow meters to ensure accurate and efficient calibration.
The system can be configured with various types of flow meters, including Positive Displacement (PD) Meters, Mass Flow Meters, or Turbine Meters, featuring either DCV piston-type or diaphragm-type with a separate Strainer and Air Eliminator unit or a combined unit.
1. Comprehensive Calibration System:
The Master Flow Metering Skid comprises essential components such as a Flow Meter, Batch Controller, Strainer, Air Eliminator, DCV (Differential Control Valve), manifold with piping valves, a 5-meter steel-braided hose, fittings, and more. This comprehensive system ensures thorough calibration of installed flow meters.
2. Versatility in Flow Meter Types:
Compatible with various types of flow meters, including PD Meters, Mass Flow Meters, and Turbine Meters, allowing flexibility based on specific calibration requirements.
3. Mobile Nature:
The mobile design of the skid enhances its flexibility, enabling the calibration of installed PD meters from one end to the last gantry end in the least amount of time. This mobility adds a layer of convenience to the calibration process.
4. Efficient Calibration Process:
The skid works in series with the flow meters installed in gantries, facilitating a streamlined and efficient calibration process. The mobile nature of the unit ensures quick and thorough calibration across various points.
5. Customization Options:
Cryogenic offers skid-based flow metering systems with configurations tailored to meet customer requirements. This ensures that the system is designed to align perfectly with specific calibration needs.
Whether it's the mobile Master Flow Metering Skid or the skid-based flow metering system, Cryogenic provides solutions that prioritize accuracy, efficiency, and flexibility. Elevate your calibration processes with our versatile and reliable flow metering systems, designed to meet the dynamic needs of the industry.
| CRL- MMT - 01 |
|---|
| Air Eliminator + Strainer + Pd Meter + Dcv + Batch Controller |
| CRL- MMT - 02 |
|---|
| Strainer Cum Air Eliminator + Pd Meter + Dcv + Batch Controller |
| CRL- MMT - 03 |
|---|
| Air Eliminator + Strainer + Pd Meter + Dcv + Batch Controller |
| CRL- MMT - 04 |
|---|
| Strainer Cum Air Eliminator + Mass Flow Meter + Dcv + Batch Controller |
| CRL- MMT - 05 |
|---|
| Customized Metering Assembly |
*All above metering is in 150# if other class is required please consult factory
