As unfiltered liquid enters the strainer, it seamlessly passes through the basket, where nearly all impurities are trapped, ensuring that only pristine liquid emerges through the strainer's outlet.

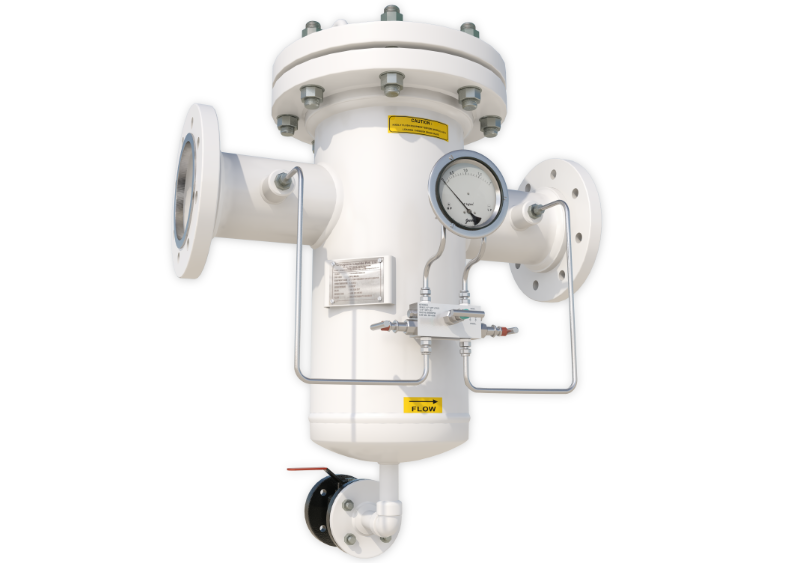

Our Basket Strainer is equipped with advanced dynamic flow and a generously sized filtration area, guaranteeing minimal pressure drops and extended maintenance intervals. Its innovative design incorporates an 'O' Ring seal between the basket flange and the strainer internal flange, preventing any liquid bypass without filtration. The strategic positioning of the basket is secured, even in the event of reverse flow.

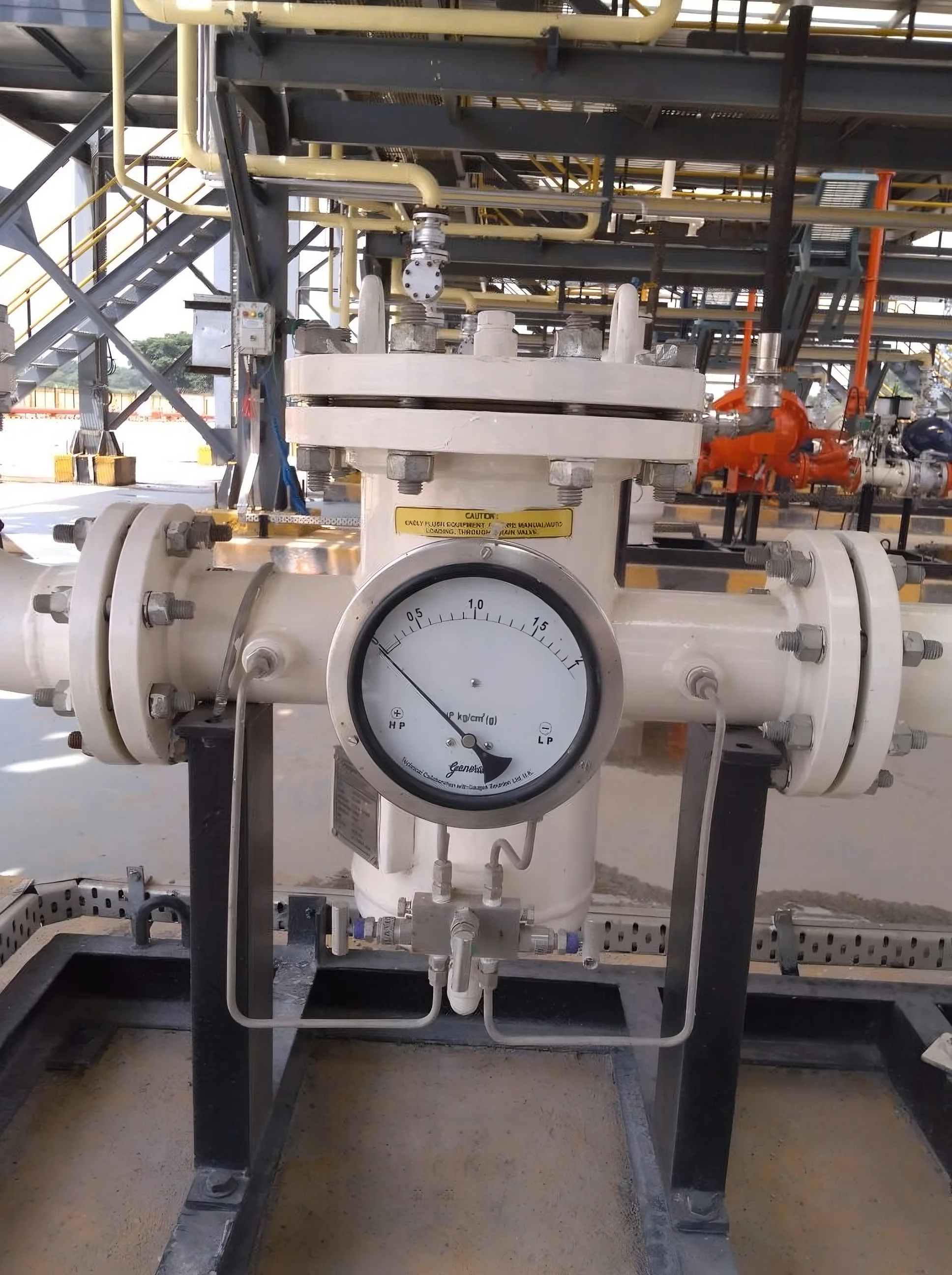

Designed to enhance the accuracy of measuring devices, such as Positive Displacement Meters or Turbine Meters, the Basket Strainer is typically installed upstream. This strategic placement optimizes the precision of measuring devices, ensuring reliable and consistent results.

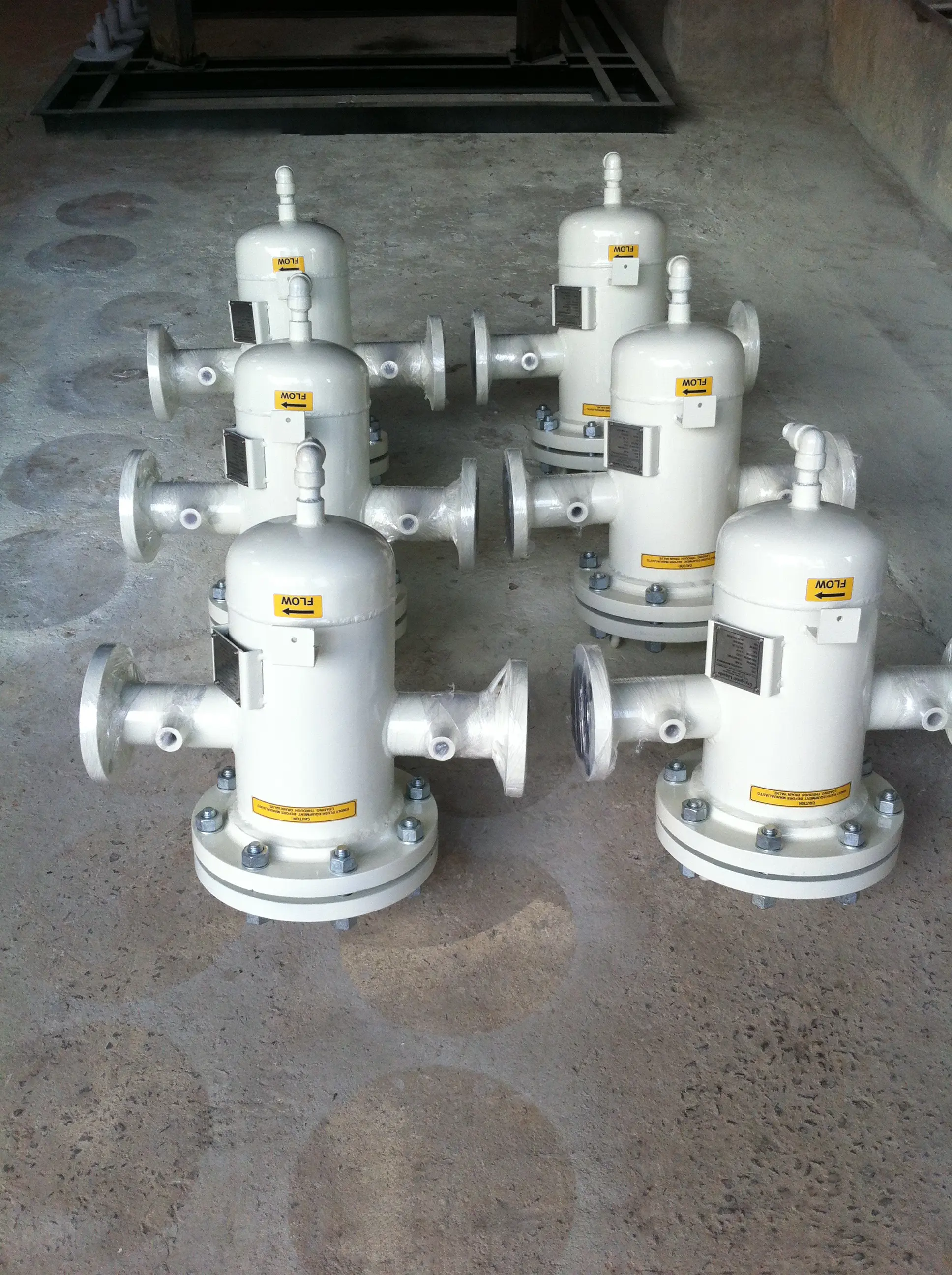

Choose from our range of Basket Type Strainers, available in sizes ranging from 1" to 24", accommodating flow rates up to 900 m³/hr or more, and designed to withstand pressures up to 100 bar. Our designs adhere to the latest edition of ASME Section VIII div I, reflecting our commitment to quality and compliance with industry standards. Elevate your operational efficiency with Cryogenic's cutting-edge Basket Strainer, a hallmark of reliability and performance.
Presenting our Duplex Basket Strainer, meticulously engineered for applications demanding uninterrupted operation without the need for shutdowns. The innovative design of this strainer allows the flow to bypass and re-enter the main product line, facilitating continuous operation. This unique configuration ensures that one side can undergo maintenance or servicing while the other stream remains in operation, minimizing downtime and optimizing efficiency.
The Duplex Basket Strainer features a two-way ball valve with an equalizing tee positioned between two basket filter bodies. This strategic arrangement not only streamlines the filtration process but also enhances the overall reliability of the system. The seamless integration of the duplex design contributes to a more efficient and resilient filtration solution.
Our track record speaks volumes, with a commendable history of supplying over 3200 units by the year 2018. This extensive experience underscores our commitment to delivering high-quality, reliable duplex basket strainers that meet and exceed industry standards. Elevate your operational continuity with Cryogenic's Duplex Basket Strainer, a pinnacle of engineering excellence and proven performance.
Discover the exceptional features and benefits of our Duplex Basket Strainer, setting new standards in versatility and efficiency:
1. Bidirectional Flow Capability:
Our Duplex Basket Strainers are designed to accommodate bidirectional flow, allowing installation for both left-to-right and right-to-left directions. This flexibility ensures seamless integration into diverse piping configurations.
2. Effortless Maintenance:
Baskets are easily removable, streamlining maintenance procedures and minimizing downtime. This user-friendly feature enhances operational efficiency and facilitates swift cleaning or replacement when needed.
3. Ample Filtration Area:
Enjoy a generous filtration area that ensures optimal particle capture. The large filtration area is designed to exceed 2-3 times the pipe flow area, with the option for even higher capacities tailored to specific requirements.
4. Versatile Material Options:
Choose between Carbon Steel or Stainless Steel Housings, providing the flexibility to match the strainer to the specific demands of your application. This adaptability enhances the strainer's resilience in various operating environments.
5. Optimized Flow Design:
Our strainers are meticulously engineered for free flow area through the screen, ensuring efficient filtration with minimal pressure drops. Higher flow area designs can be customized to meet specific performance needs.
6. Durable Protective Coating:
Carbon steel housings undergo a rigorous treatment process, including grit blasting, epoxy primer coating, and a final layer of epoxy paint. This meticulous coating enhances the strainer's durability and resistance to environmental factors.
7. Sealed for Security:
Covers feature spiral-wound gasket seals, providing a secure barrier against leaks. This robust sealing mechanism ensures the integrity of the filtration process and safeguards against potential system disruptions.
8. Versatile Gasket Options:
Gaskets and seals come in various materials such as Viton, Nitrile, Buna N, PTFE, Graphite, catering to diverse operational requirements. This versatility ensures compatibility with a wide range of fluids and environments.
9. Comprehensive Monitoring and Control:

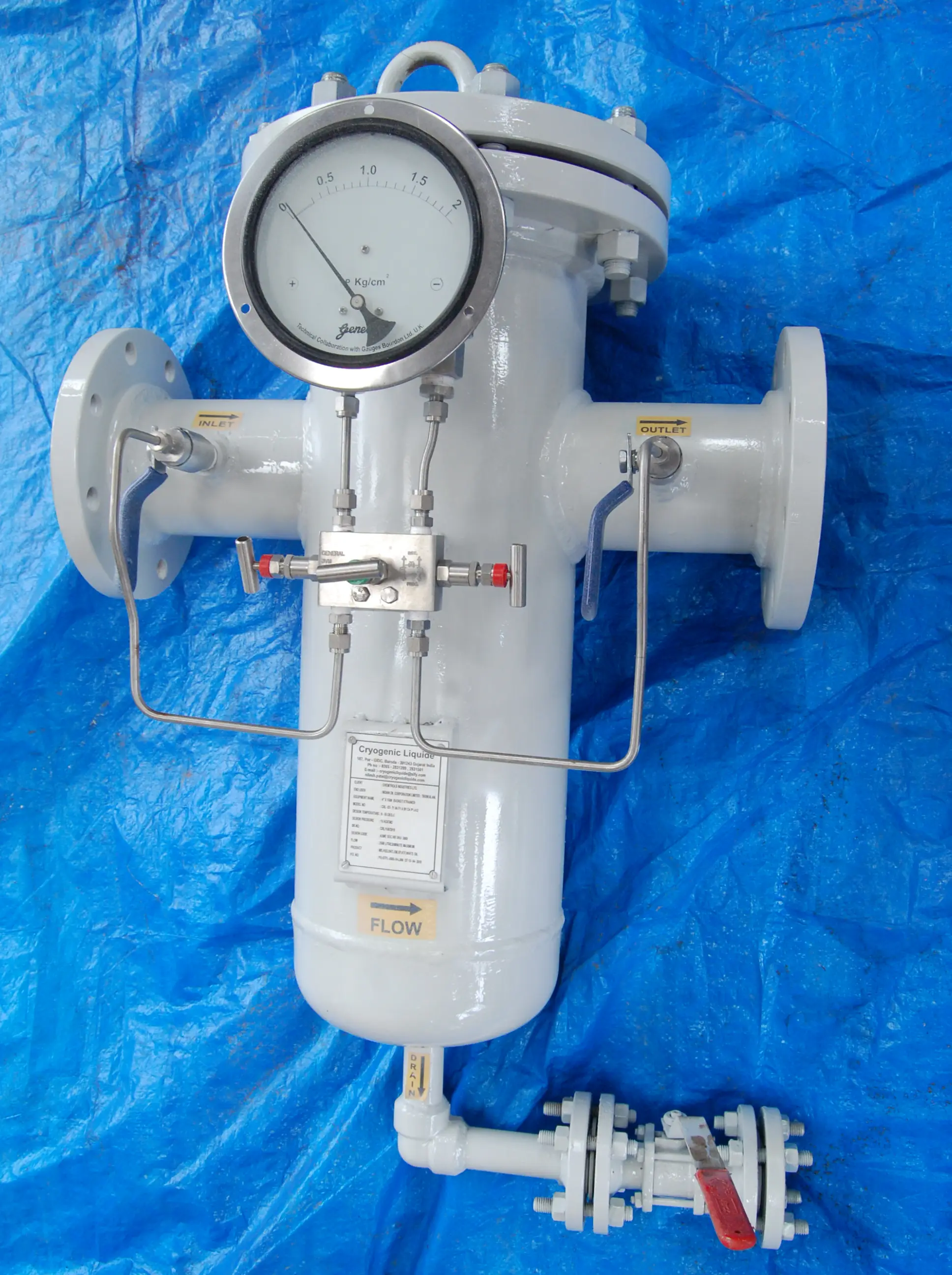

Strainers are supplied with a differential pressure gauge, offering real-time monitoring. Optional reed switch, manifold 3-valve configuration, complete tubing, and fittings provide a comprehensive solution for effective control and system management.
Elevate your operational standards with Cryogenic's Duplex Basket Strainer, where innovation meets reliability for unparalleled performance.
| T - Type of strainer |
|---|
| T1 Simplex with top body flange |
| T2 Simplex with top body cover with Davit arm |
| T3 Simplex with Quick opening closure |
| T4 Simplex with jacketed |
| T5 Duplex with body flange |
| Nominal Size mm | ||||
|---|---|---|---|---|
| S0- 1" ( 25 mm) | S1 - 1.5" (40 mm) | S2 - 2" (50 mm) | S3 - 3" (100 mm) | S4 - 4" (100 mm) |
| S5 - 6" (150 mm) | S6 - 8" (200 mm) | S7 - 10" (250 mm) | S8 - 12" (300 mm) | S9 - 14" (350 mm) |
| S10 - 16" (400 mm) | S11 - 18" (450 mm) | S12 - 20" (500 mm) | S13 - 24" (600 mm) | S14- As per customer's requirment |
| R - Rating (Standard flange are slip on race face type if Weld Neck type is required please specify) |
|---|
| R1 – ANSI B 16.5 150# |
| R2 – ANSI B 16.5 300# |
| R3 - ANSI B 16.5 600# |
| M - Material of construction |
|---|
| M1 SA 516 Gr.70 (Body) & ASTM A 105 (Flanges) |
| M2 SA 516 Gr.70 (Body) & SA 350 LF2 (Flanges) |
| M3 IS 2062 Gr.B (Body) & ASTM A 105 (Flanges) |
| M4 SS 304 (Body) & ASTM A 182 F 304 (Flanges) |
| M5 SS 316 (Body) & ASTM A 182 F 316 ( Flanges) |
| M6 SA 106 Gr.B (Body) & ASTM A 105 ( Flanges) |
| M7 SA 333 Gr.6 (Body) & SA 350 LF2 ( Flanges) |
| * NOTE : All gaskets/Seals will be CS inner /outer with PTFE/Graphite filler and stud /nuts will be ASTM A 193 Gr.B7 / A 194 Gr.2H |
| For Stainless Steel and Low temperature service Gasket and Fastners are different |
| B - Basket and Mesh size |
|---|
| B0 Basket with SS 316- 200 mesh |
| B1 Basket with SS 316 - 100 mesh |
| B2 Basket with SS 316 - 80 mesh |
| B3 Basket with SS 316 - 60 mesh |
| B4 Basket with SS 316 - 40 mesh |
| B5 Basket with SS 316 - 20 mesh |
| B6 Customized basket with wire mesh size |
| F - Flow range ( It can be any between specified value) | |||
|---|---|---|---|
| F0 0 - 500 LPM | F1 0 - 1000 LPM | F2 0 - 1500 LPM | F3 0 - 2500 LPM |
| F4 0 - 3600 LPM | F5 0 - 4800 LPM | F6 0 - 6000 LPM | F7 0 - 500 LPM |
| F8 0 - 1000 LPM | F9 0 - 1500 LPM | F10 - 0 to Customer Specific Flow rate |
| P - Operating pressure (normal) |
|---|
| P1 0 to 6 KG/CM2 |
| P2 0 to 10 KG/CM2 |
| P3 0 to 15 KG/CM2 |
| P4 0 to 25 KG/CM2 |
| P5 0 to 50 KG/CM2 |
| P5 0 to 75 KG/CM2 |
| P6 0 to 100 KG/CM2 |
| Accessories |
|---|
| A1 Ball valve for drain and vent |
| A2 Differential pressure gauge with manifold & tubing |
| A3 Differential pressure transmitter with manifold and tubing |
| A4 Differential pressure gauge with reed switch ,manifold and tubing |
| A5 Differential pressure gauge with diaphragm seal |
| A6 Thermal Safety Valve |
| If you want to order all above items kindly insert as A123456 |
